Pioneer Multi Zone 9,000 BTU Quantum Ultra Ceiling Concealed Indoor Section Ductable Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V - RT009GLSILCFHG-10S

Pioneer Multi Zone 9,000 BTU Quantum Ultra Ceiling Concealed Indoor Section Ductable Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V - RT009GLSILCFHG-10S

• Part Number: RT009GLSILCFHG
• Power Supply: 208~230V, 60Hz, 1Ph
• Cooling Capacity: 9,000 BTU/h
• Heating Capacity: 9,000 BTU/h
• Suitable Area: 250~350 sq ft
• Air Flow (Turbo/Hi/Med/Lo/Mute): 335 / 305 / 276 / 182 / 160 CFM
• Sound Level (Turbo/Hi/Med/Lo/Mute): 43 / 41 / 39 dB(A)
• Product Dimensions (WDH): 27"-1/2 x 19"-1/4 x 7"-7/8 Inches
• Carton Dimensions (WDH): 35"-1/2 x 21"-7/8 x 9"-7/8 Inches
• Net / Gross Weight: 33.1 / 40.8 lbs

Compatibility

• Dual (2) Zone Condenser: YN020GLSI24M2G
• Triple (3) Zone Condenser: YN030GLSI24M3G
• Quad (4) Zone Condenser: YN040GLSI24M4G
• Quint (5) Zone Condenser: YN050GLSI24M5G

Manuals

• Technical Brochure

• User & Installation Manual

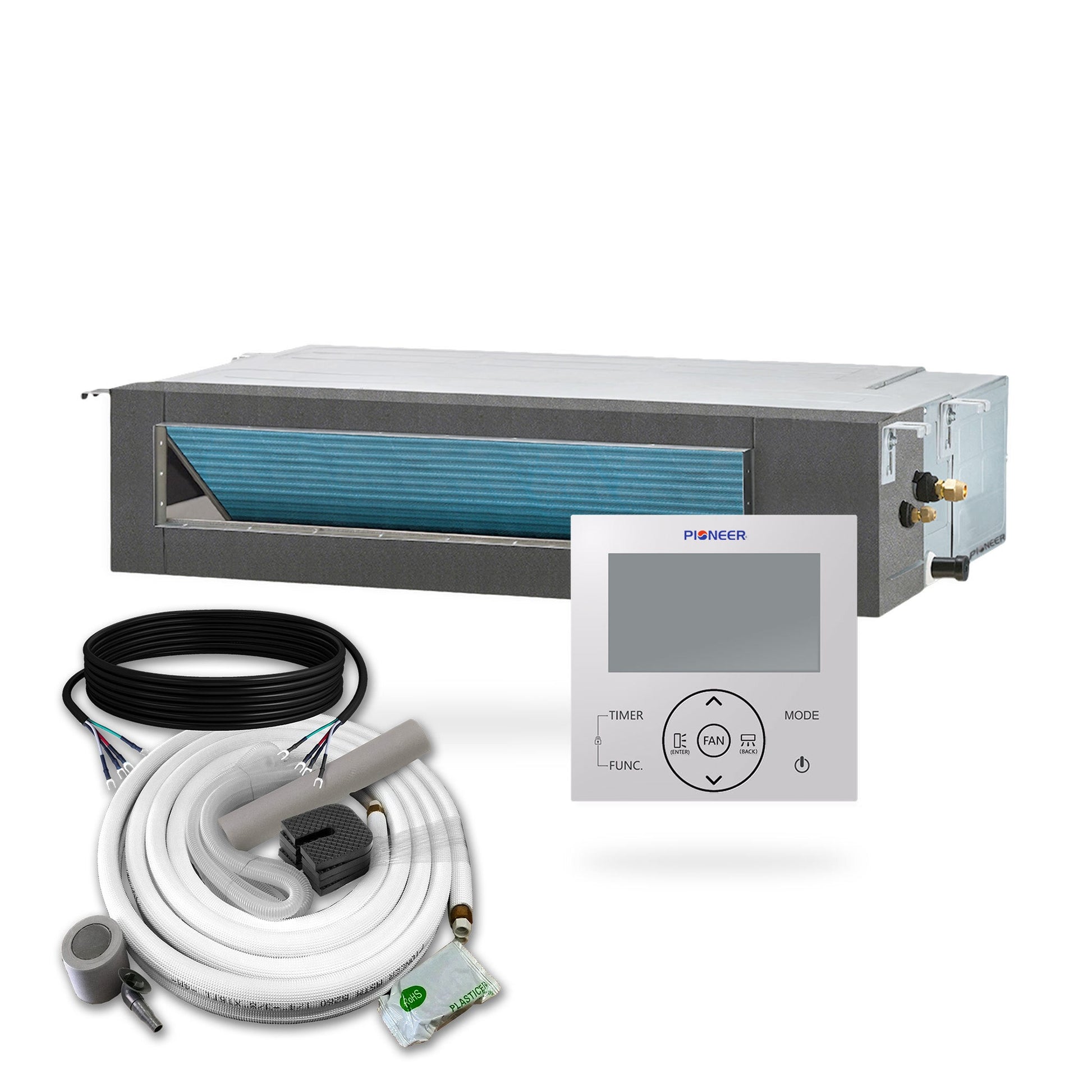

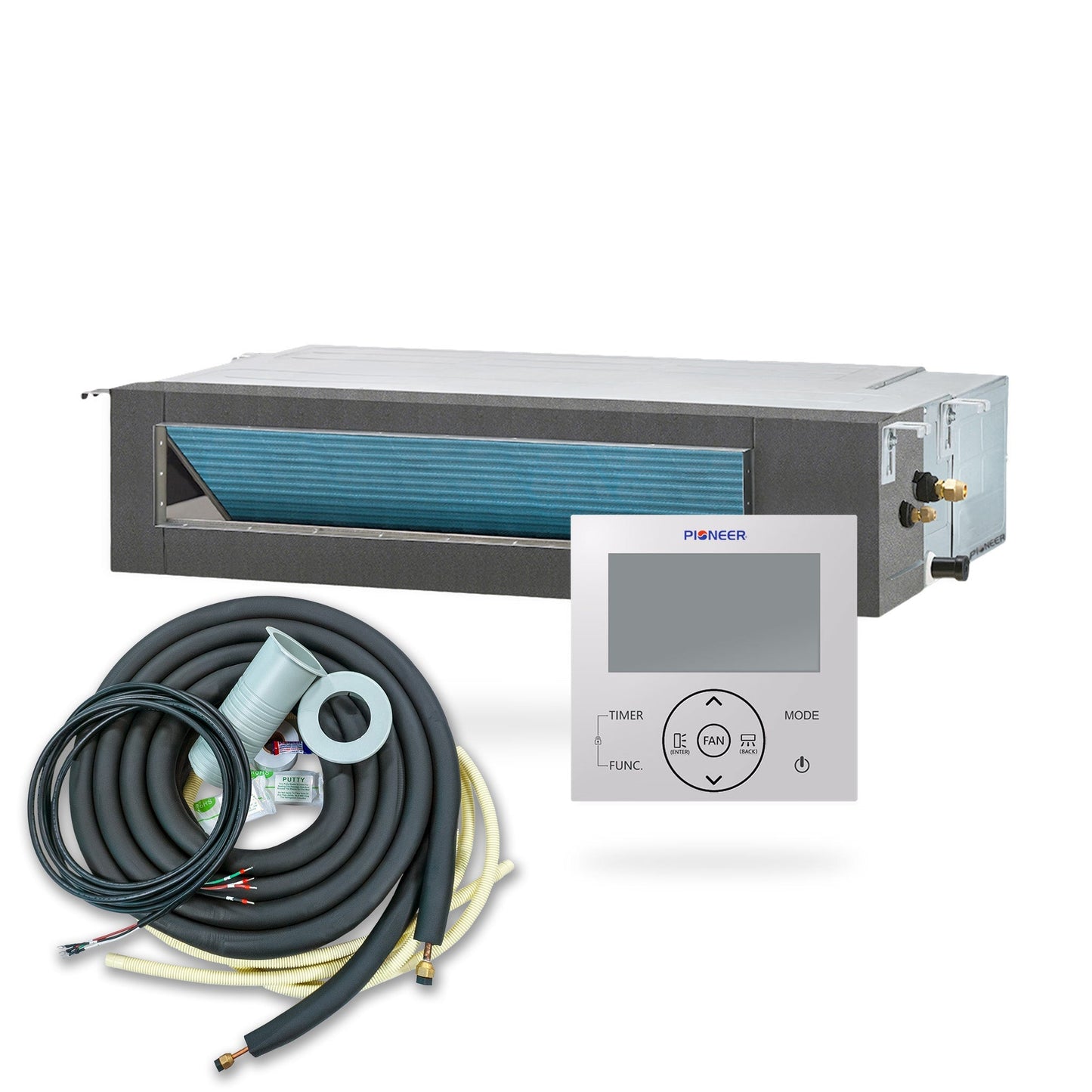

Included

• Indoor Unit
• Wireless Remote Control
• Wi-Fi Module w/ Free App

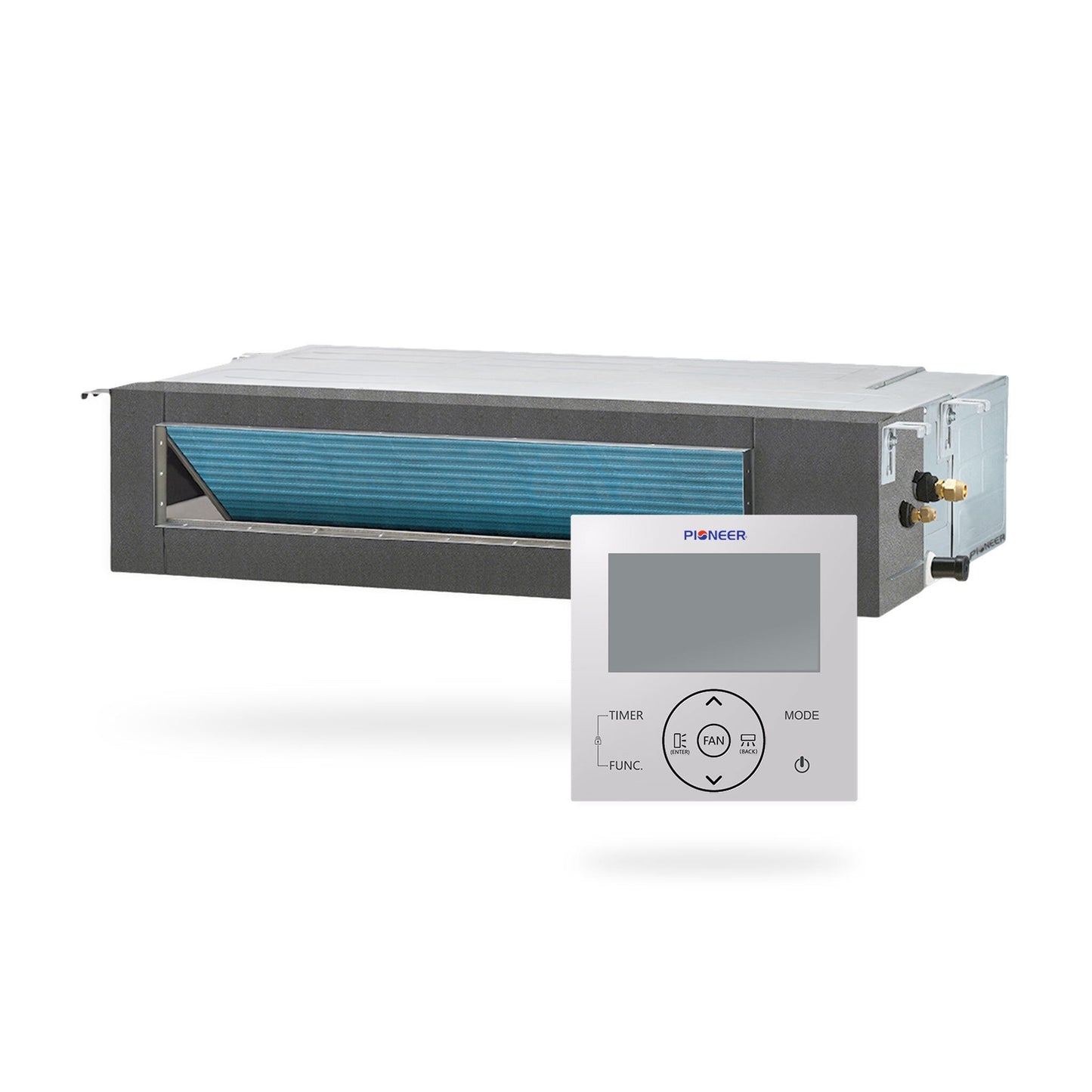

• Full Installation Kit (unless "No Installation Kit" is selected)
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual


What our Experts Think

• Excellent concealed multi‑zone flexibility: Designed as a ductable ceiling‑concealed indoor unit that pairs with Multi‑Zone outdoor systems, this 9,000 BTU heat pump delivers discreet, flexible installation for finished interiors, offices, or open spaces.

• Smart inverter performance & Wi‑Fi control: Fully DC inverter‑driven airflow provides smooth temperature modulation, while the built‑in Wi‑Fi module lets you control comfort remotely via the Pioneer Airlink app.

• Compact design, powerful airflow: Ultra‑thin profile (under 8 in. height) and high static pressure duct support help push conditioned air farther with quiet operation (~39‑43 dB).

• Integrated condensate management: Built‑in drain pump lifts drainage up to 30 in., offering installation flexibility without extra parts or pumps.

• Precision comfort & quiet operation: Tight temperature tolerance (± 2°F) and low sound levels make this ideal for living rooms, bedrooms, conference areas, and hospitality spaces.

• Broad compatibility: Works with a range of Pioneer multi‑zone outdoor units (2‑, 3‑, 4‑, or 5‑zone systems), giving you scalable zoning flexibility for varied floorplans

Q&A

Q1: What type of system is this Pioneer model?
A: It is a ceiling-concealed, ductable indoor mini-split unit with integrated heat pump, designed for multi-zone climate control.

Q2: What cooling and heating capacity does it provide?
A: Provides 9,000 BTU cooling with efficient heat pump heating, ideal for small to medium rooms.

Q3: How energy-efficient is this unit?
A: Features inverter++ technology, offering precise temperature control, quieter operation, and reduced energy consumption.

Q4: Is this unit compatible with multi-zone setups?
A: Yes, it is Multi Zone Quantum Ultra compatible, supporting integration with multiple indoor units for centralized control.

Q5: What electrical requirements does it have?
A: Operates on 230 V single-phase power, suitable for standard residential or commercial circuits.

Q6: Does it support smart controls?
A: Yes, includes Wi-Fi connectivity for remote operation via smartphone or smart home systems.

Q7: What installation style does it support?
A: Designed for ceiling-concealed ductable installation, minimizing visual impact while providing even airflow.

Q8: Can it provide heating in colder climates?
A: Yes, the heat pump supports low-ambient heating for year-round comfort.

Q9: What indoor unit features enhance comfort?
A: Includes multi-directional airflow, washable filters, and quiet operation for efficient indoor climate management.

Q10: What space is this system best suited for?
A: Ideal for small offices, bedrooms, or medium residential spaces, especially where ceiling-concealed installation is preferred.

Maintenance Tips

• Clean indoor air filters every 2–4 weeks to maintain airflow, efficiency, and indoor air quality.

• Keep the ceiling-concealed unit and duct connections free of dust and debris to optimize airflow and inverter performance.

• Inspect condensate drain lines and pan regularly to prevent leaks or water damage.

• Check refrigerant lines, wiring, and mounting annually for safe and reliable operation.

• Use the self-clean cycle periodically to reduce moisture buildup and prevent mold or odors.

• Maintain adequate clearance in the ceiling plenum for proper air distribution and system efficiency.

• Schedule professional service yearly for inverter diagnostics, refrigerant checks, and overall system optimization.
