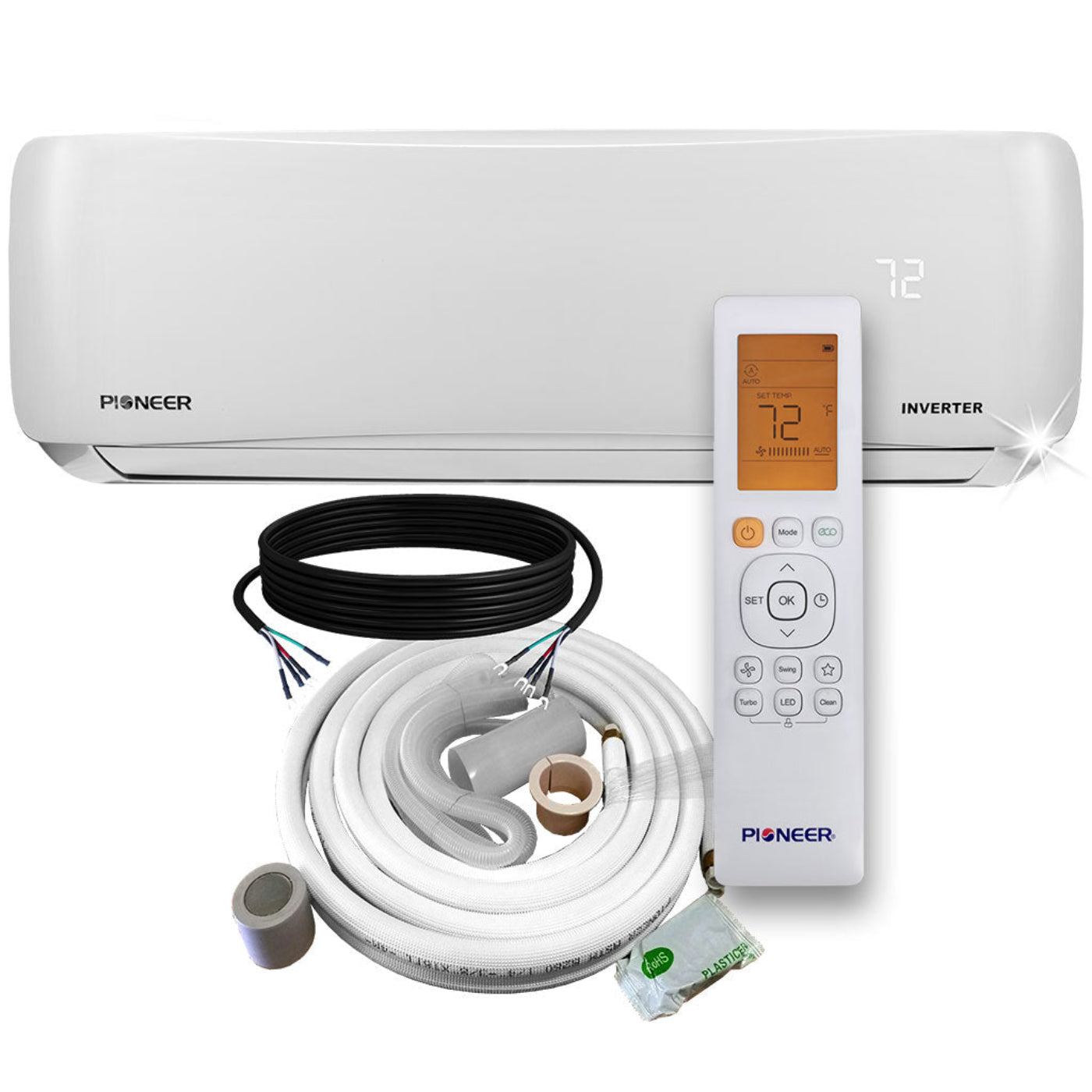

Pioneer Multi Zone 24,000 BTU Quantum Series Wall Mount Indoor Section Split Inverter++ Air Conditioner Heat Pump 230V - WS024GMFI22HLE-10

Pioneer Multi Zone 24,000 BTU Quantum Series Wall Mount Indoor Section Split Inverter++ Air Conditioner Heat Pump 230V - WS024GMFI22HLE-10

Inverter++ Variable Speed Multi Split Systems we offer are available in a mix and match fashion and fully user selectable and customizable. Multi Zone Wall Mount Type Split Air Conditioning and Heating System (Indoor Section Only). Variable Speed DC Inverter Operation Mode: Cooling and Heating. Capacity: 24,000 BTU/Hr. (2 Ton). Total capacity of the matched indoor units may exceed the available outdoor unit capacity by up to 35% Efficiency Rating: 20.5 S.E.E.R. Electrical Specification: 208-230 VAC, 1 Phase, 60 Hertz. Customizable length copper line set with flare connections come with this indoor unit. Matches with Quint (5) zone Multi Split Outdoor Units.

Compatible Outdoor Units

Matching outdoor units need to be selected and purchased separately. To purchase a multi split system, first determine the outdoor unit required we offer as follows:

• Quad Zone: YN040GMFI22M4E
• Quint Zone: YN050GMFI22M5E

Included

• Indoor Unit
• Wireless Remote Control
• Various Installation Kit Options Available
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual


Manuals

• Matching Table
• Specification Table

What our Experts Think

• Powerful wall‑mount performance: With 24,000 BTU capacity and 22 SEER2 inverter++ technology, this Quantum Series unit delivers efficient cooling and heat pump heating suited for larger spaces (~650–900 sq ft) where strong, responsive comfort is required.

• Smooth inverter modulation: Variable‑speed DC inverter design ensures precise temperature control, reduced cycling, and lower energy use compared with traditional fixed‑speed systems — translating to quieter operation and extended equipment life.

• Ideal for multi‑zone systems: Designed as an indoor section that pairs with a multi‑zone outdoor condenser, it enables customized comfort control for individual rooms or zones while maximizing efficiency across the system.

• Energy‑conscious performance: High SEER2 and inverter efficiency help reduce utility costs and environmental impact, making it a smart choice for homeowners aiming to improve energy savings without sacrificing comfort.

• User‑friendly design: Wall‑mount placement offers easy installation, space‑saving aesthetics, and wide airflow distribution, making it suitable for living rooms, open‑plan spaces, bedrooms, and larger occupied areas.

• Installation flexibility: Standard 230 V operation and professional‑ready connections allow integrated multi‑zone setups with minimal extra hardware — ideal for custom HVAC projects.

Q&A

Q1: What type of system is this Pioneer model?
A: It is a wall-mounted indoor mini-split section with integrated Inverter++ heat pump, designed for multi-zone climate control.

Q2: What cooling and heating capacity does it provide?
A: Provides 24,000 BTU cooling with heat pump heating, ideal for medium to large rooms or single-zone applications within multi-zone setups.

Q3: How energy-efficient is this unit?
A: Features Inverter++ technology for precise temperature control, quiet operation, and energy savings.

Q4: What installation style does it support?
A: Designed for wall-mounted installation, delivering efficient airflow while conserving space.

Q5: What electrical requirements does it have?
A: Operates on 230 V single-phase power, compatible with standard residential or light-commercial circuits.

Q6: Can it integrate with multiple zones?
A: Yes, suitable for multi-zone setups, allowing one outdoor unit to support multiple indoor sections.

Q7: Can it provide heating in cold climates?
A: Yes, the heat pump supports low-ambient heating, providing year-round comfort.

Q8: What indoor unit features enhance comfort?
A: Includes adjustable airflow, quiet operation, and energy-efficient performance.

Q9: Is it compatible with Pioneer Quantum Series outdoor units?
A: Yes, it pairs seamlessly with Quantum Series multi-zone outdoor units for flexible configurations.

Q10: What spaces is this system best suited for?
A: Ideal for living rooms, bedrooms, offices, or small commercial spaces requiring discreet wall-mounted climate control.

Maintenance Tips

• Clean indoor air filters every 2–4 weeks to maintain airflow, efficiency, and indoor air quality.

• Keep the indoor unit and vents free of dust and debris to optimize inverter performance and consistent cooling/heating.

• Inspect condensate drain lines and pan regularly to prevent leaks or water buildup.

• Check refrigerant lines, wiring, and unit mounting annually for safe and reliable operation.

• Use self-clean cycles periodically to reduce moisture buildup and prevent mold or odors.

• Maintain adequate clearance around the wall mount unit for proper airflow and temperature distribution.

• Schedule professional servicing once per year for inverter diagnostics, refrigerant checks, and full system optimization.
