Pioneer Diamante Ultra 9,000 BTU 23 SEER2 Ductless Mini-Split Inverter++ Energy-Star Wi-Fi Air Conditioner Heat Pump Full Set 115V with 16 Ft. Kit - WYT009ALFI22RL

Pioneer Diamante Ultra 9,000 BTU 23 SEER2 Ductless Mini-Split Inverter++ Energy-Star Wi-Fi Air Conditioner Heat Pump Full Set 115V with 16 Ft. Kit - WYT009ALFI22RL

• Ultra High Efficiency Diamante Ultra Ductless Mini Split Heat Pump System
• Cooling capacity: 9,000 BTU/H with 23 SEER2 / 12.5 EER2 efficiency
• Heating capacity: 9,500 BTU/H with 9.0 HSPF2 / 3.5 COP2 efficiency
• Voltage: 110/120V, 60Hz, 1Ph
• High Wall Mounted Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Low Ambient Unit (-13°F)
• Wireless Internet Access Included (Via Free Smartphone App)
• AHRI Estimated Annual Operating Costs:
• Cooling: $54.00
• Heating: $201.00

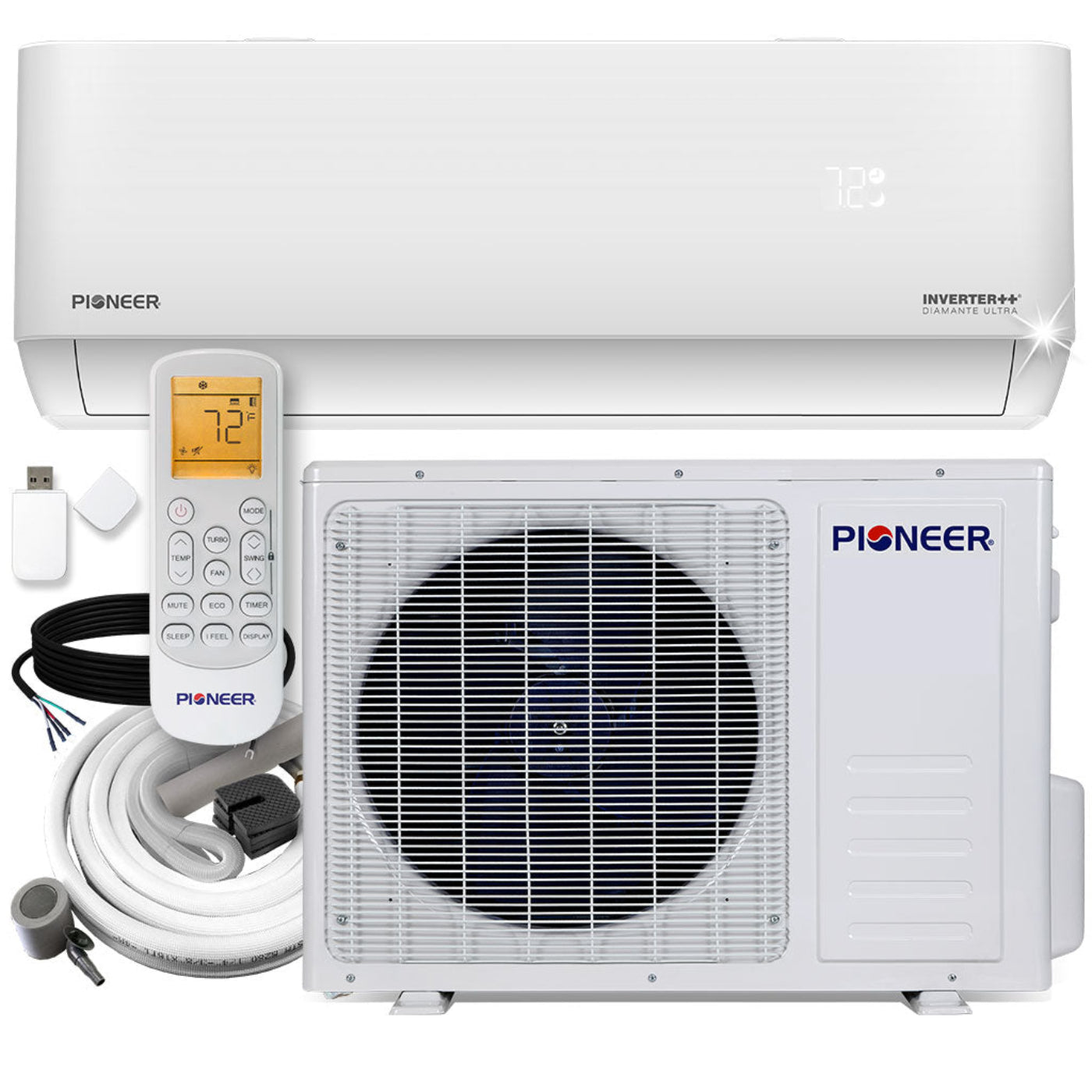

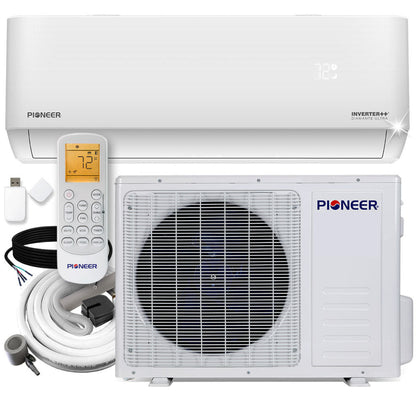

Included

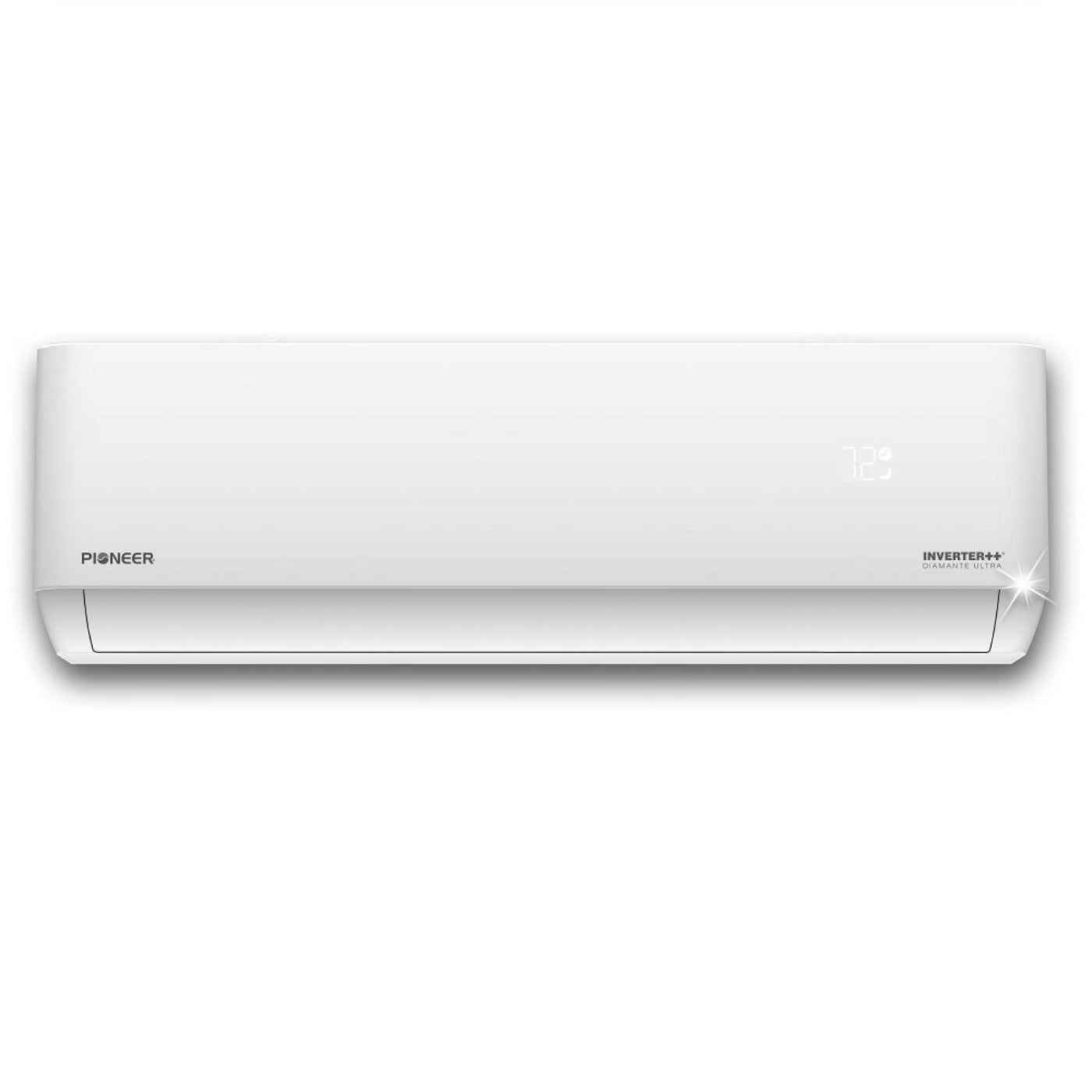

• Indoor Unit

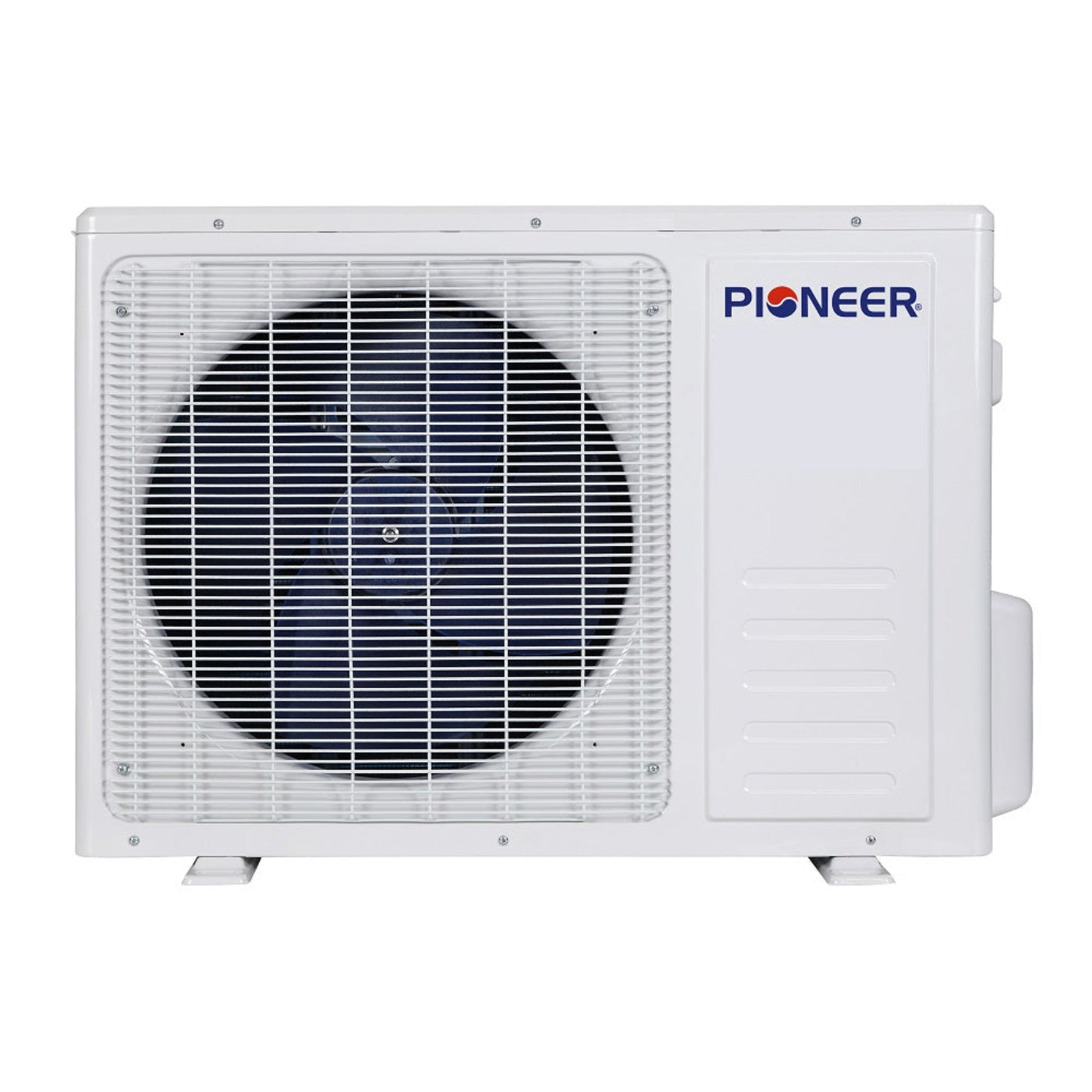

• Outdoor Unit

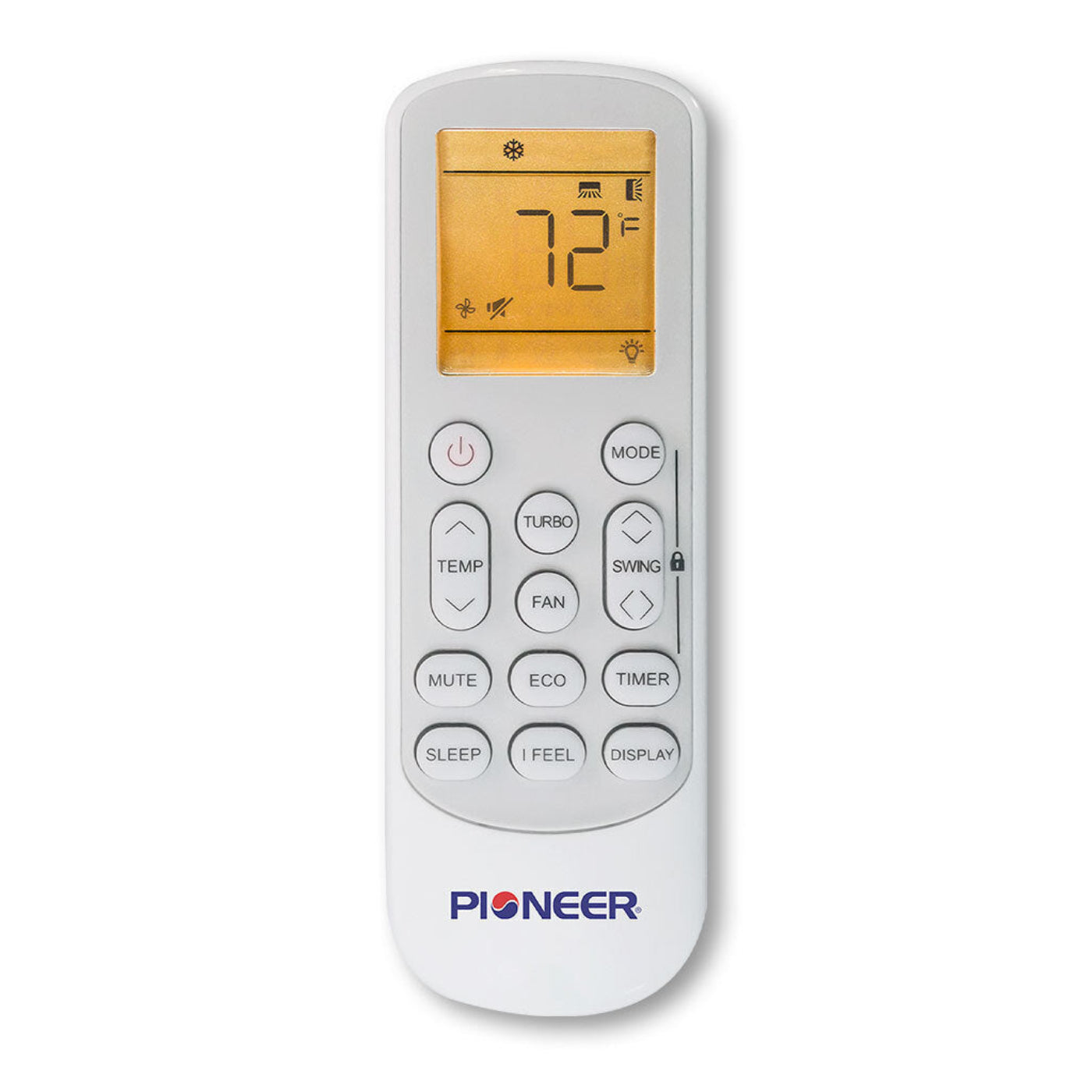

• Wireless Remote Control (with wall holder and batteries)

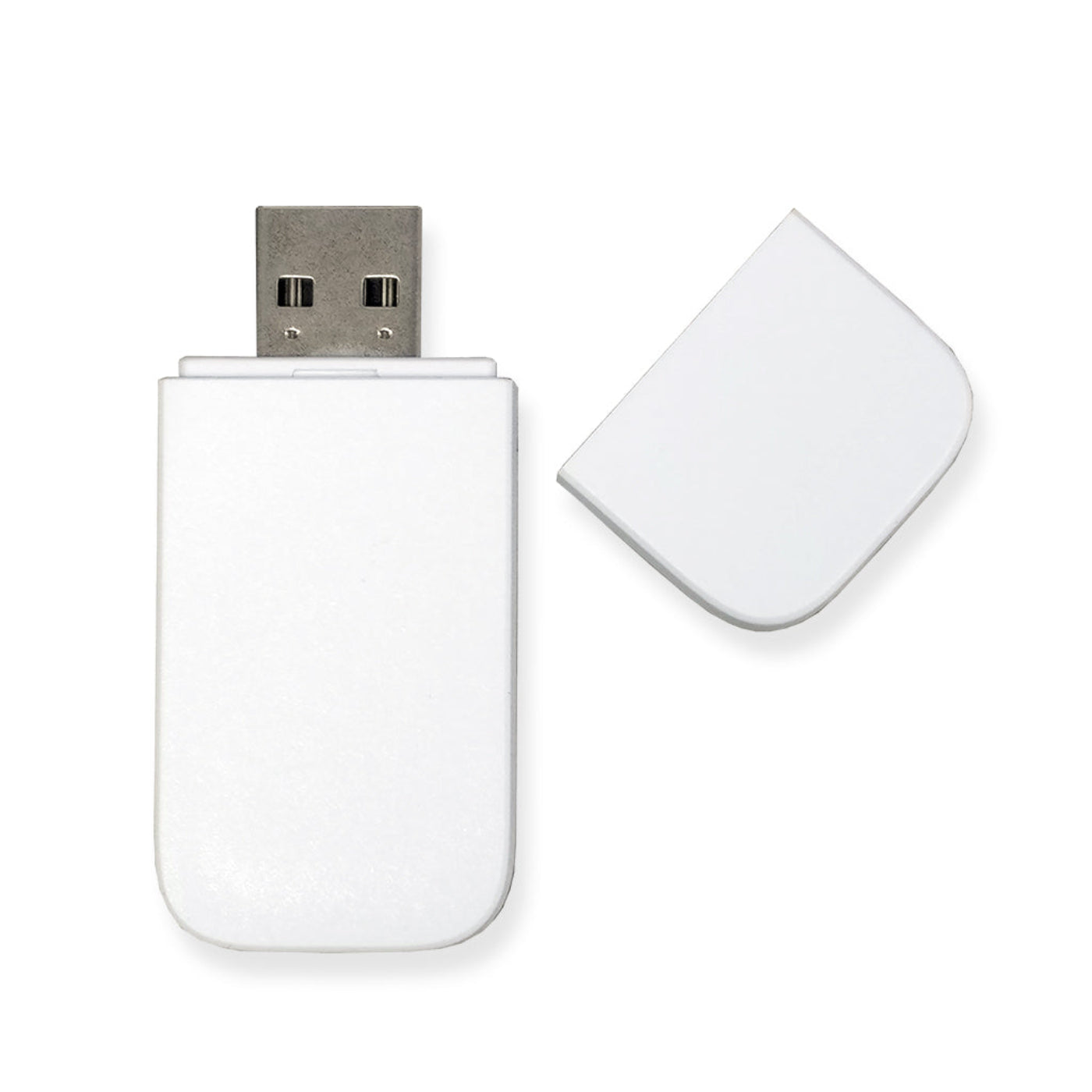

• Internet Control Module

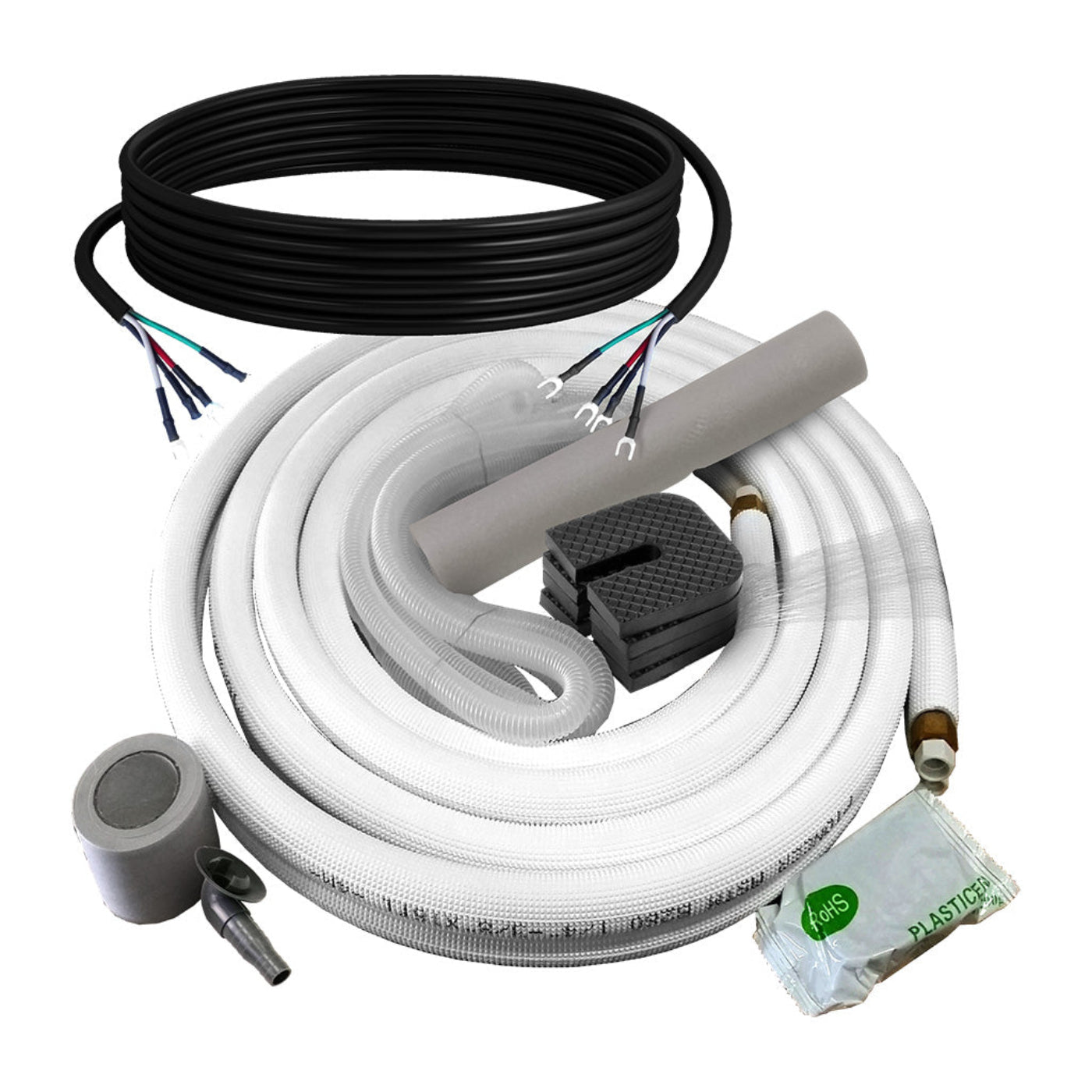

• 16 Ft. Copper Lines
• 16 Ft. Electrical Wire
• 10 Ft. Drain for indoor/outdoor
• Wall Passage Sleeve
• Putty for Wall Hole
• Leak Guard Sealer
• Wrapping Tape
• Installation Manual
• User’s Manual

What our Experts Think

• Ultra‑high efficiency & year‑round comfort: The Pioneer Diamante Ultra 9,000 BTU 23 SEER2 ductless mini‑split offers excellent cooling and heat pump heating performance with one of the highest SEER2 ratings in its class, delivering strong energy savings and comfort for small rooms (~100–350 sq ft).

• Energy‑Star certified & Wi‑Fi ready: ENERGY‑STAR efficiency helps lower seasonal operating costs, while built‑in Wi‑Fi control allows you to adjust temperature remotely via a smartphone app or smart home integration — perfect for modern connected living.

• Smooth inverter heat pump tech: Variable‑speed DC inverter modulation delivers precise temperature control, quieter operation, and reduced cycling, improving comfort and extending component life compared with fixed‑speed units.

• Balanced cooling & heating: Offers 9,000 BTU cooling and ~9,500 BTU heating with strong seasonal energy and heat performance metrics — efficient for both summer AC and winter heat pump use.

• Standard 115 V installation: Designed for 110‑120 V household power with a recommended 20 A single‑pole breaker, making it easier to install in apartments or homes without dedicated 230 V circuits.

• Complete set with accessories: Comes with indoor/outdoor units, remote, internet control module, 16 ft lineset, wiring, drain, and installation hardware, reducing extra part purchases and simplifying setup.

Q&A

Q1: What type of system is this Pioneer model?
A: It is a ductless mini-split air conditioner with integrated Inverter++ heat pump, ideal for efficient single-zone climate control.

Q2: What cooling and heating capacity does it provide?
A: Provides 9,000 BTU cooling with heat pump heating, perfect for small rooms or offices.

Q3: How energy-efficient is this unit?
A: Features 23 SEER2 efficiency, Energy-Star rating, and Inverter++ technology for precise temperature control and lower energy use.

Q4: Does it support smart controls?
A: Yes, includes Wi-Fi connectivity for remote operation via smartphone or smart home systems.

Q5: Does it include installation accessories?
A: Yes, this full set includes indoor unit, outdoor condenser, 16 ft line set, and installation kit for complete setup.

Q6: What electrical requirements does it have?
A: Operates on 115 V single-phase power, compatible with standard residential outlets.

Q7: How does inverter++ technology improve performance?
A: Variable-speed inverter++ control ensures quiet operation, consistent comfort, and energy efficiency.

Q8: Can it provide heating in cold climates?
A: Yes, the heat pump supports low-ambient heating, offering year-round comfort.

Q9: What indoor unit style is included?
A: Features a high-wall mounted air handler for optimized airflow and quiet operation.

Q10: What spaces is this system best suited for?
A: Ideal for bedrooms, small offices, or compact residential spaces.

Maintenance Tips

• Clean indoor air filters every 2–4 weeks to maintain airflow, system efficiency, and indoor air quality.

• Keep the outdoor condenser coil free of dust, leaves, and debris to ensure optimal heat transfer and inverter performance.

• Inspect condensate drain lines and pan regularly to prevent leaks or water buildup.

• Check refrigerant lines, wiring, and unit mounting annually for safe and reliable operation.

• Use the self-clean cycle periodically to reduce moisture buildup and prevent mold or odors.

• Maintain adequate clearance around indoor and outdoor units for proper airflow and consistent comfort.

• Schedule annual professional servicing for inverter diagnostics, refrigerant checks, and system optimization.
