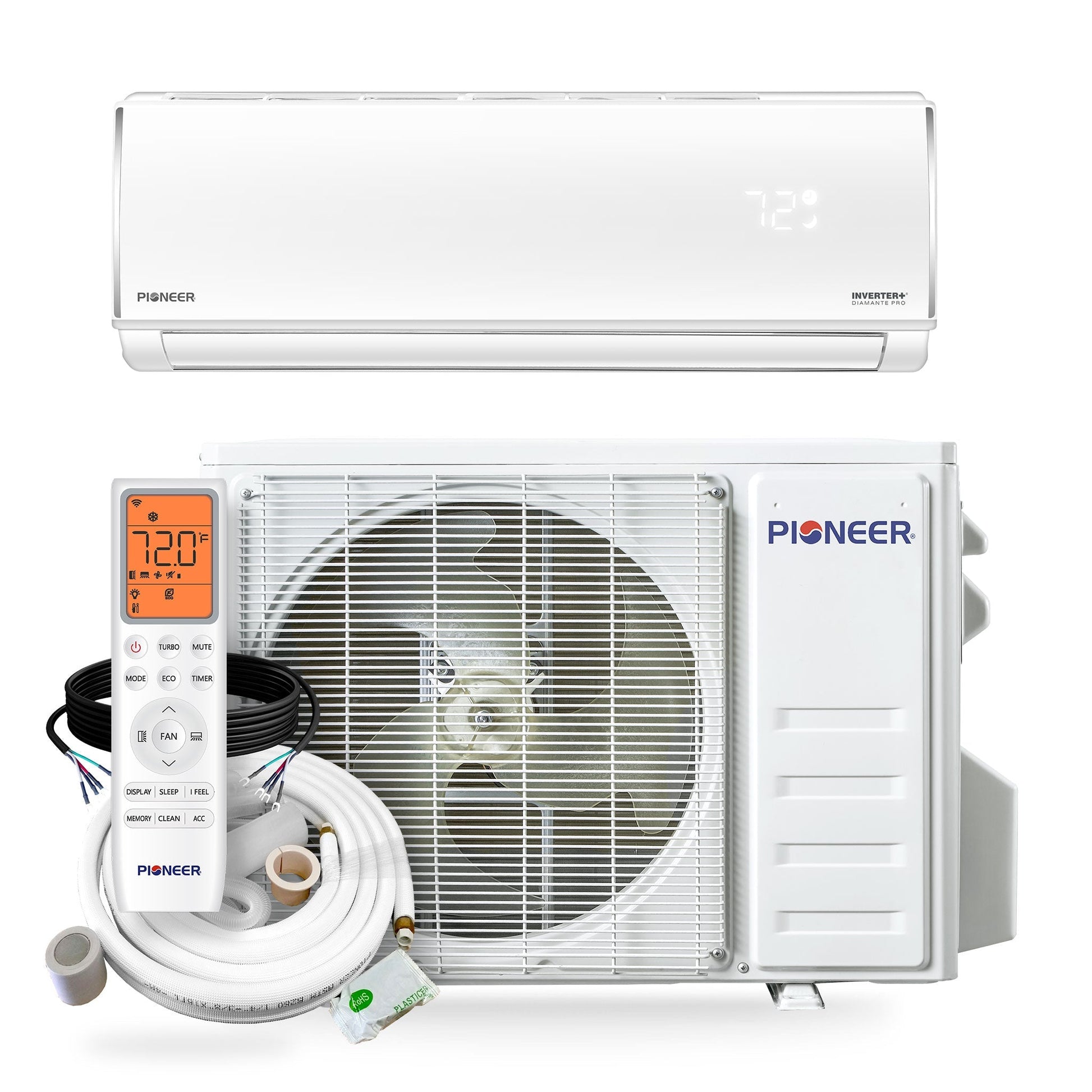

Pioneer Diamante Pro 9,000 BTU 20 SEER2 230V High-Wall Ductless Energy-Star Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit - WYT009GLSI20RL

Pioneer Diamante Pro 9,000 BTU 20 SEER2 230V High-Wall Ductless Energy-Star Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit - WYT009GLSI20RL

• High Efficiency Diamante Pro Ductless Mini Split Heat Pump System
• Cooling capacity: 9,000 BTU/H with 20 SEER2 / 12 EER2 efficiency
• Heating capacity: 10,000 BTU/H with 10 HSPF2 / 3.81 COP2 efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• High Wall-Mounted Ductless Air Conditioning & Heating System
• Variable-Speed DC Inverter Driven Performance
• Factory-Precharged with Environmentally Friendly R454b Refrigerant
• Standard Ambient Range Operation (As low as -4°F in Heating / As high as 122°F in Cooling)

Features

• Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
• Dual-Drainage Ports
• Washable, Reusable Air Filters
• Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)

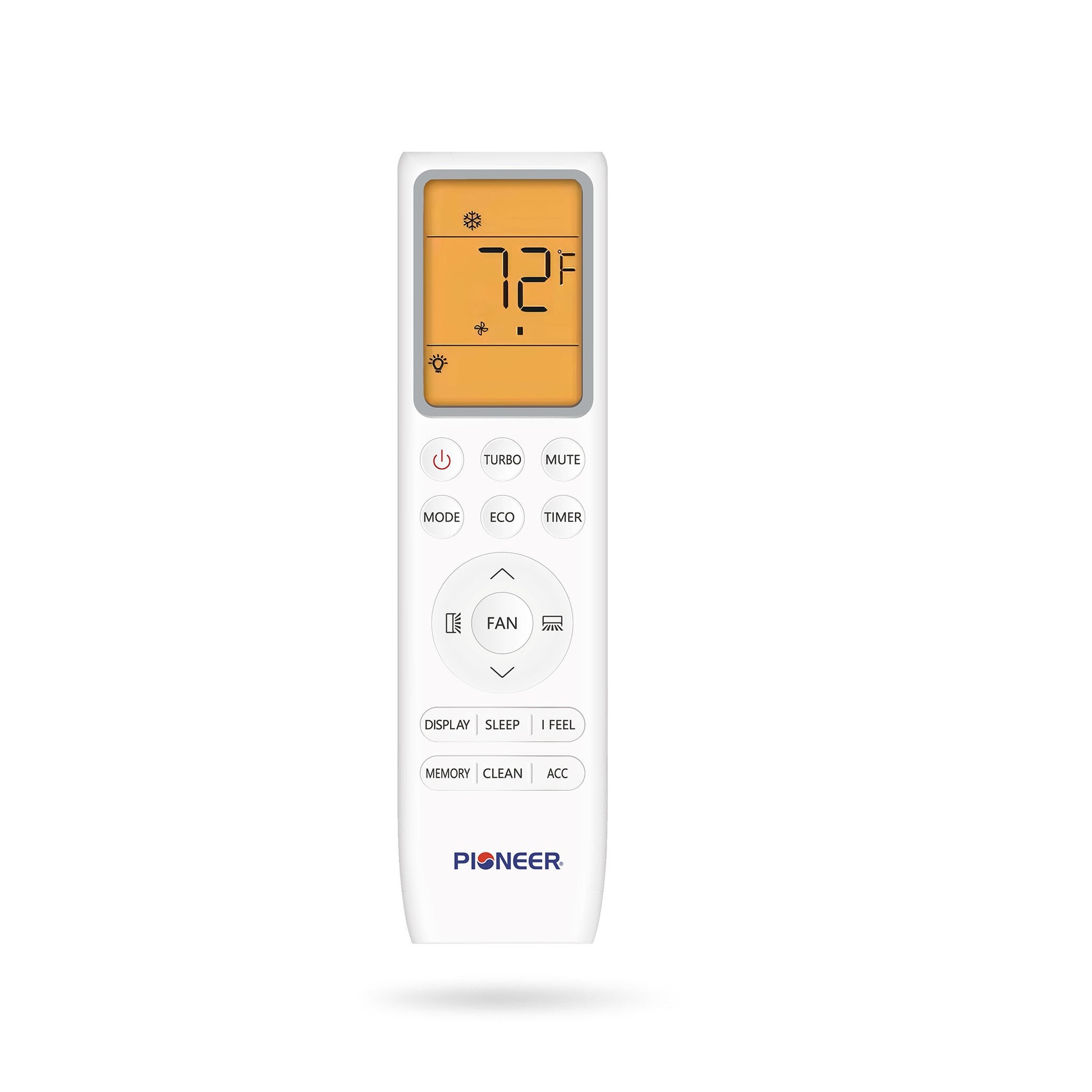

• Functional Remote with:
• ECO and SLEEP Modes, for Energy-Conservation
• Timer On/Off Control
• TURBO, for Times of High-Demand
• Self-Clean Cycle
• MEMORY, to Recall Favorite Settings
• IFEEL, to Detect and Adjust to Local Temperature

What our Experts Think

• Premium ceiling‑cassette performance: This Pioneer Quantum Ultra 23,000 BTU 22.5 SEER2 ductless ceiling cassette mini‑split delivers omni‑directional 8‑way airflow for uniform comfort across larger rooms — great for offices, living areas, retail spaces, and more.

• High efficiency & year‑round comfort: With 22.5 SEER2 cooling efficiency and robust heat pump heating (25,000 BTU), it balances strong seasonal energy savings with reliable performance in diverse climates.

• Smart airflow & indoor air quality: Advanced dual‑axis louvers, fresh‑air intake option, and washable/reusable filters help improve comfort and air freshness while reducing maintenance needs.

• Built‑in condensate management: Integrated drain pump (up to ~30 in. lift) simplifies installation and helps avoid water issues in ceiling applications.

• Quiet, customizable operation: Multi‑speed airflow and low sound levels help maintain a peaceful environment — ideal for bedrooms, classrooms, or shared spaces.

• App & control flexibility: Compatible with the free Pioneer Airlink app, handheld remote, wired controllers, and voice platforms like Alexa/Google Assistant (where supported), giving you smart control options.

• Suitable coverage & installation: Designed for ~750–1,000 sq ft areas and includes a full kit (indoor/outdoor units, panel, remote, line sets, and installation essentials) to streamline professional setup.

Q&A

Q1: What type of system is this Pioneer model?
A: It is a high-wall ductless mini-split air conditioner with integrated heat pump, designed for single-zone cooling and heating.

Q2: What cooling and heating capacity does it provide?
A: Provides 9,000 BTU cooling with reliable heat pump heating, ideal for small rooms or offices.

Q3: How energy-efficient is this unit?
A: Features 20 SEER2 efficiency and Energy-Star rating, reducing electricity use while maintaining comfort.

Q4: What room size is this mini-split suitable for?
A: Recommended for 250 – 400 sq ft, depending on insulation and ceiling height.

Q5: Does it include installation accessories?

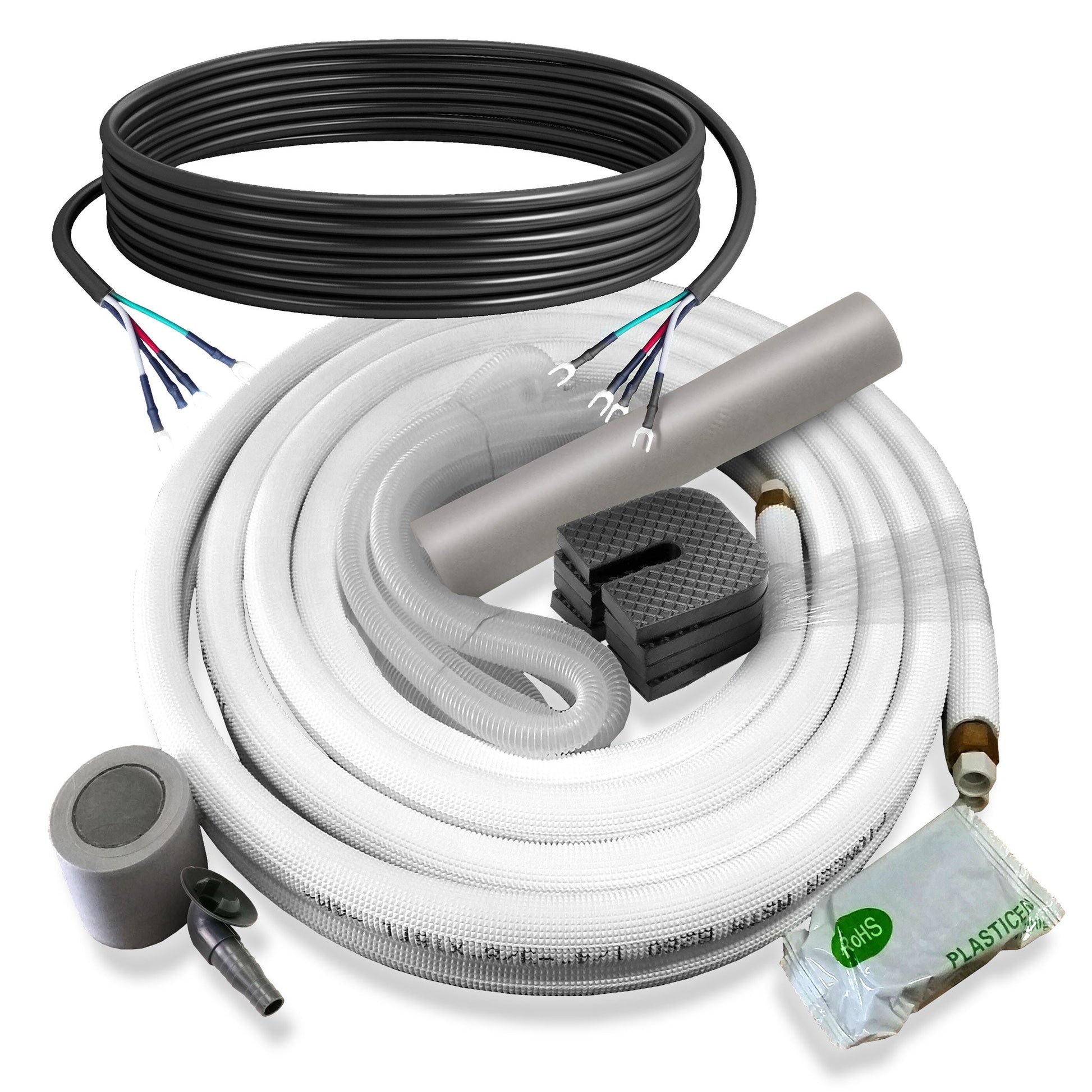

A: Yes, comes with a 16 ft installation kit including pre-insulated copper line set and mounting hardware.

Q6: What electrical requirements does it have?
A: Operates on 230 V single-phase power, compatible with standard residential circuits.

Q7: How does inverter technology improve performance?
A: Variable-speed inverter control ensures quiet operation, precise temperature, and energy savings.

Q8: Can it provide heating in cold climates?
A: Yes, the heat pump supports low-ambient heating, ensuring year-round comfort.

Q9: What indoor unit style is included?

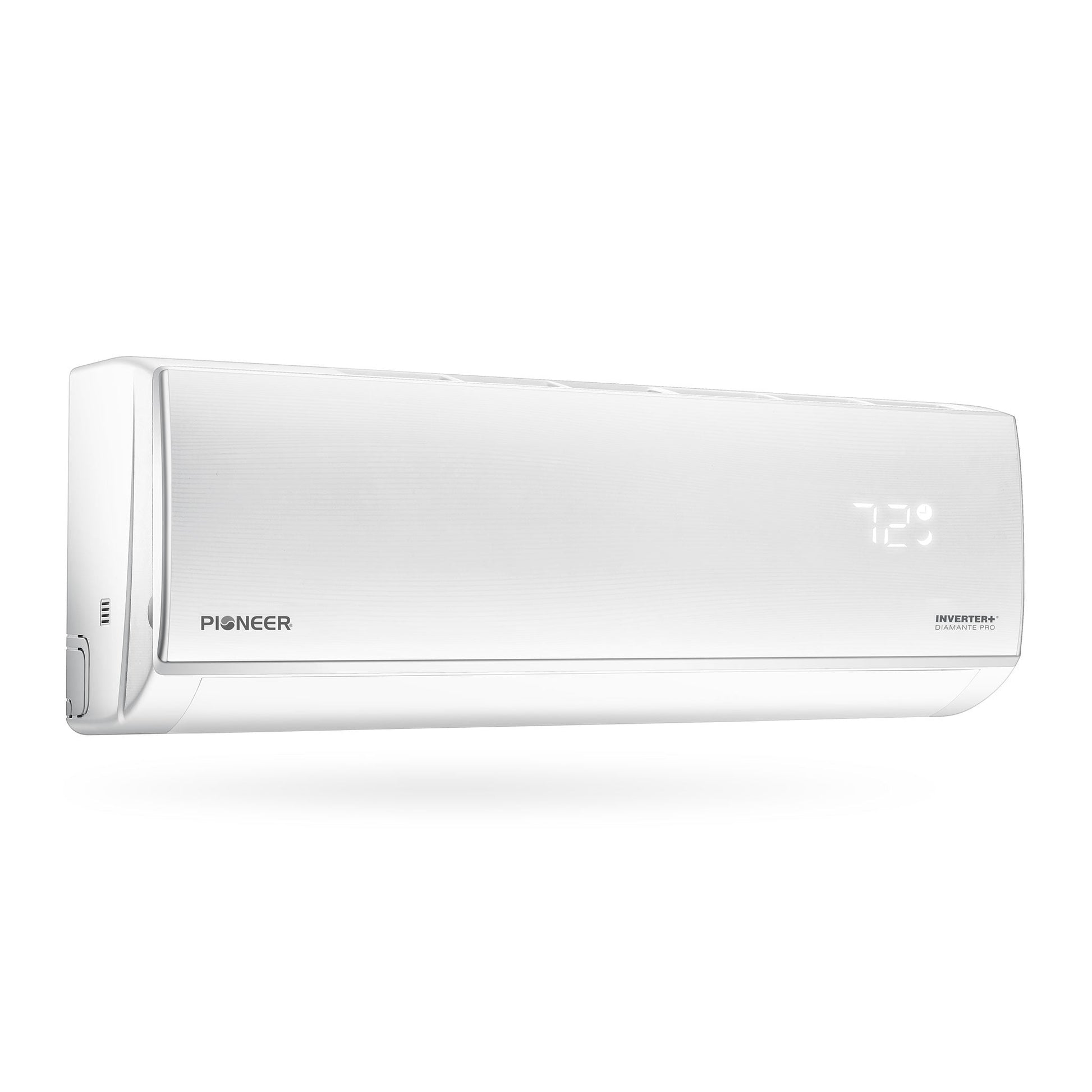

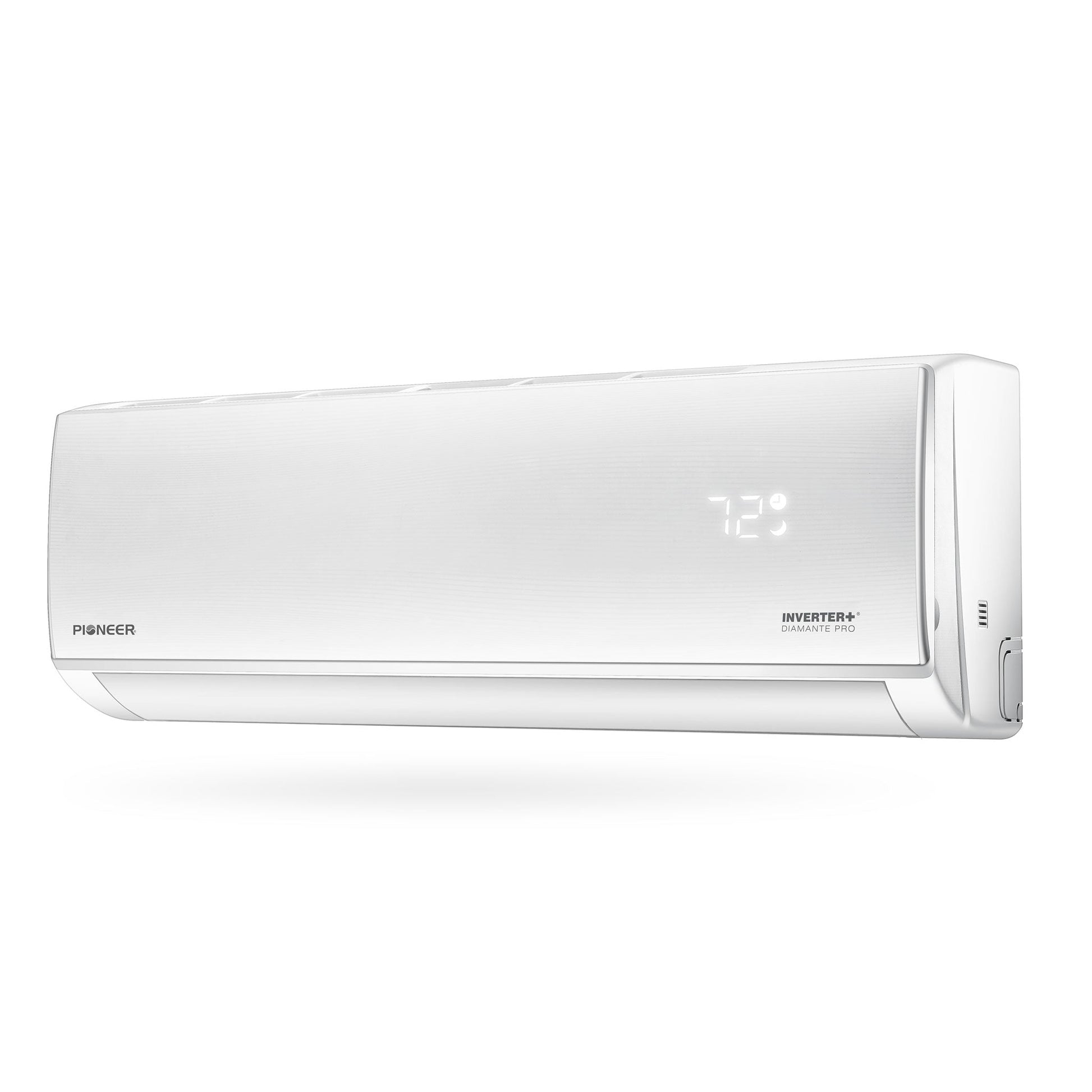

A: Features a high-wall mounted air handler with optimized airflow and quiet operation.

Q10: Is this system suitable for residential or light-commercial use?
A: Yes, ideal for bedrooms, small offices, or compact living areas.

Maintenance Tips

• Clean indoor air filters every 2–4 weeks to maintain airflow, system efficiency, and indoor air quality.

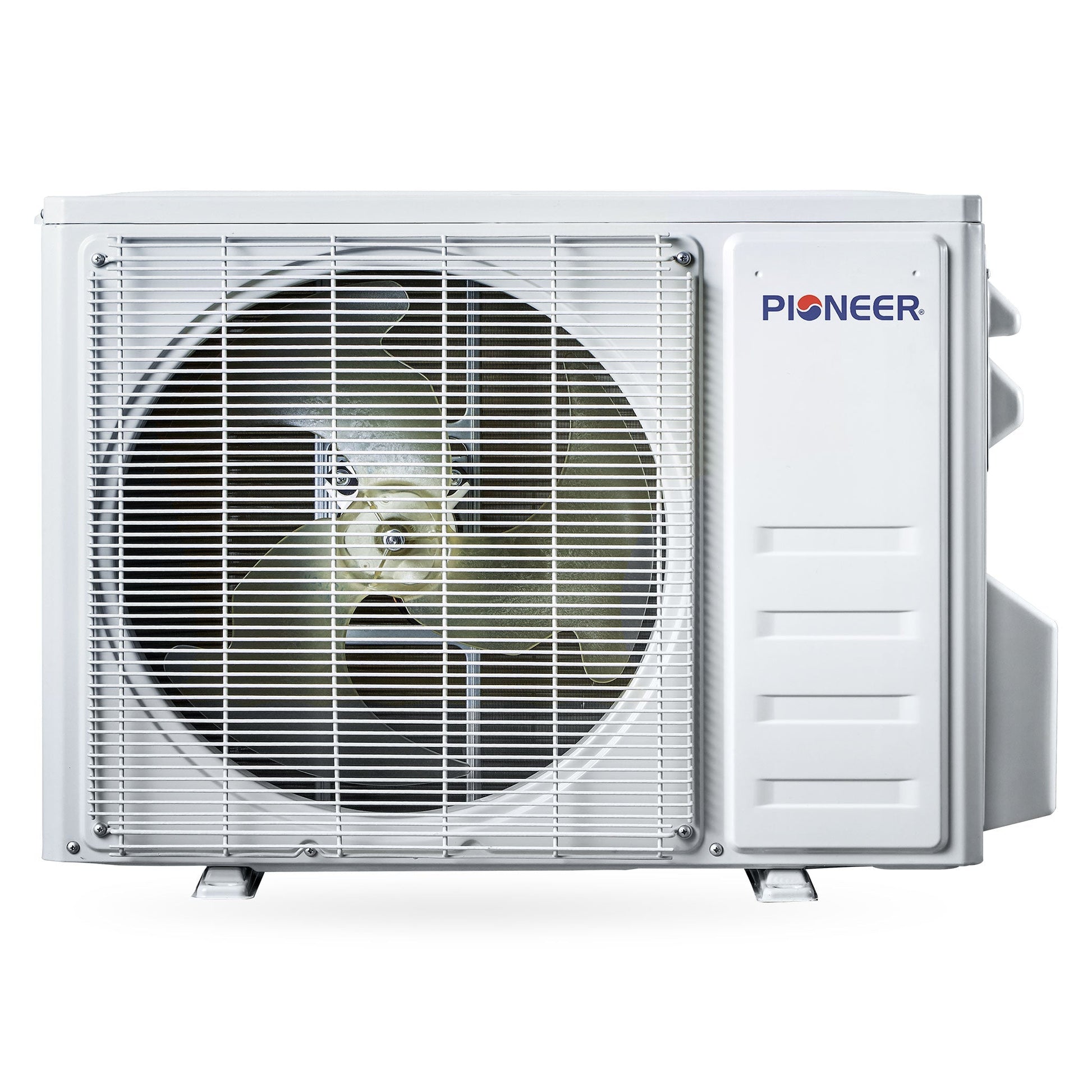

• Keep the outdoor condenser coil free of dust, leaves, and debris to ensure optimal heat exchange and inverter performance.

• Inspect condensate drain lines regularly to prevent water leaks or buildup.

• Check refrigerant line insulation and electrical connections annually for safe, reliable operation.

• Use the self-clean cycle periodically to reduce moisture buildup and prevent mold or odors.

• Maintain adequate clearance around indoor and outdoor units for consistent airflow and comfort.

• Schedule annual professional servicing for inverter diagnostics, refrigerant checks, and system optimization.
