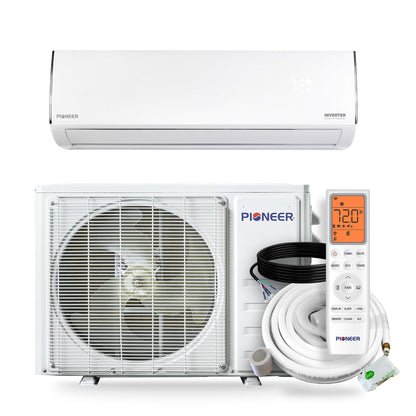

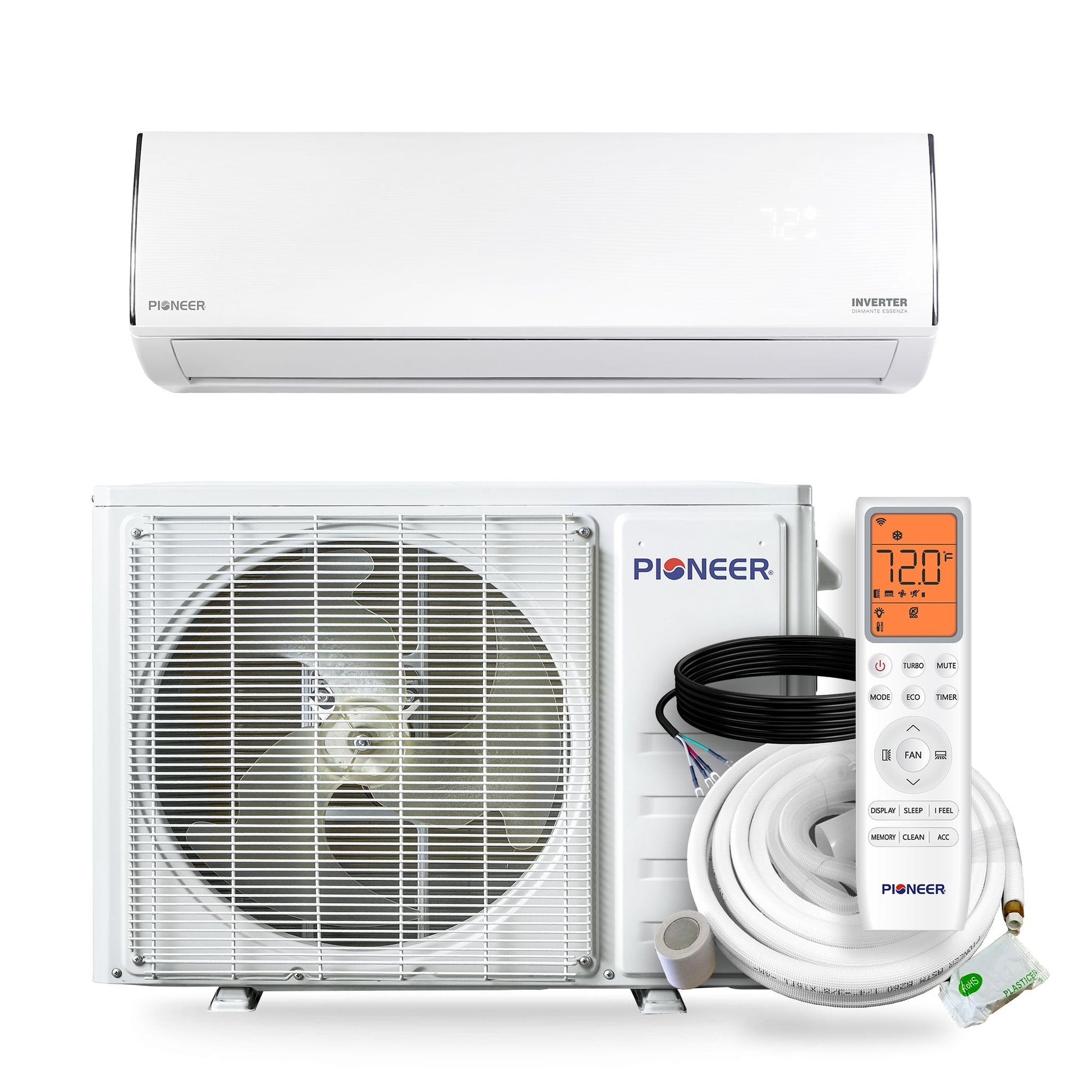

Pioneer Diamante Essenza 11,500 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit - WYT012GLUI17RL

Pioneer Diamante Essenza 11,500 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit - WYT012GLUI17RL

• Standard Efficiency Diamante Essenza Ductless Mini Split Heat Pump System
• Cooling capacity: 11,500 BTU/H with 17 SEER2 / 9.5 EER2 efficiency
• Heating capacity: 11,500 BTU/H with 8.5 HSPF2 / 3.2 COP2 efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• High Wall-Mounted Ductless Air Conditioning & Heating System
• Variable-Speed DC Inverter Driven Performance

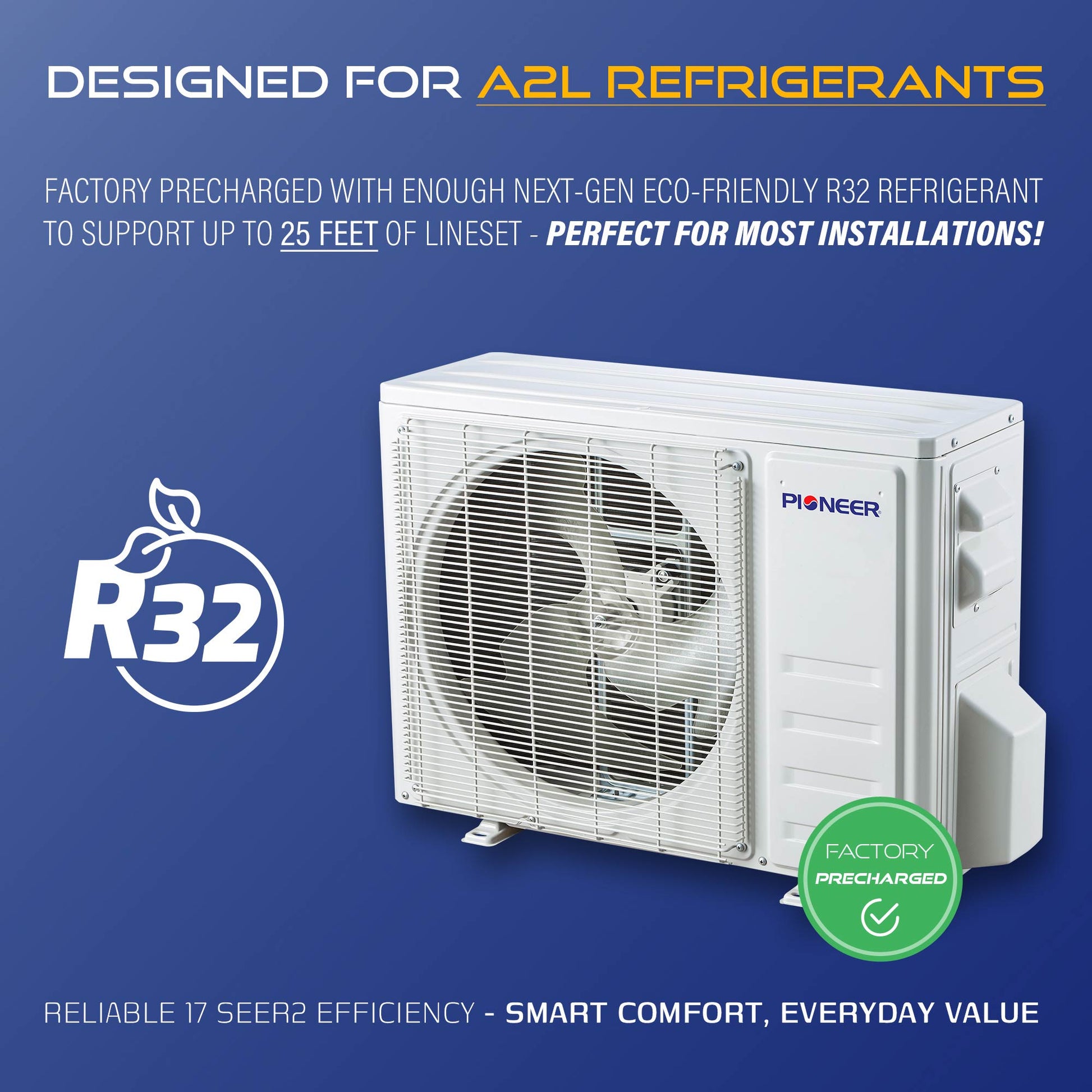

• Factory-Precharged with Environmentally Friendly R-32 Refrigerant
• Standard Ambient Range Operation (As low as 5°F in Heating / As high as 122°F in Cooling)

Features

• Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
• Dual-Drainage Ports
• Washable, Reusable Air Filters
• Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)
• Functional Remote with:
• ECO and SLEEP Modes, for Energy-Conservation
• Timer On/Off Control
• TURBO, for Times of High-Demand
• Self-Clean Cycle
• MEMORY, to Recall Favorite Settings
• IFEEL, to Detect and Adjust to Local Temperature

What our Experts Think

• Efficient comfort for small‑to‑medium rooms: With 11,500 BTU capacity and 17 SEER2 inverter performance, this mini‑split delivers reliable cooling and heating while helping lower seasonal energy costs — great for bedrooms, studies, and small living spaces.

• Balanced year‑round performance: Heat pump design ensures smooth temperature control in both cooling and heating seasons, making it a versatile year‑round HVAC solution.

• Standard 230 V residential setup: Built for 208–230 V electrical systems, simplifying professional installation in typical home environments.

• Quiet indoor operation: Low sound levels help maintain peaceful indoor environments — ideal for bedrooms and quiet spaces.

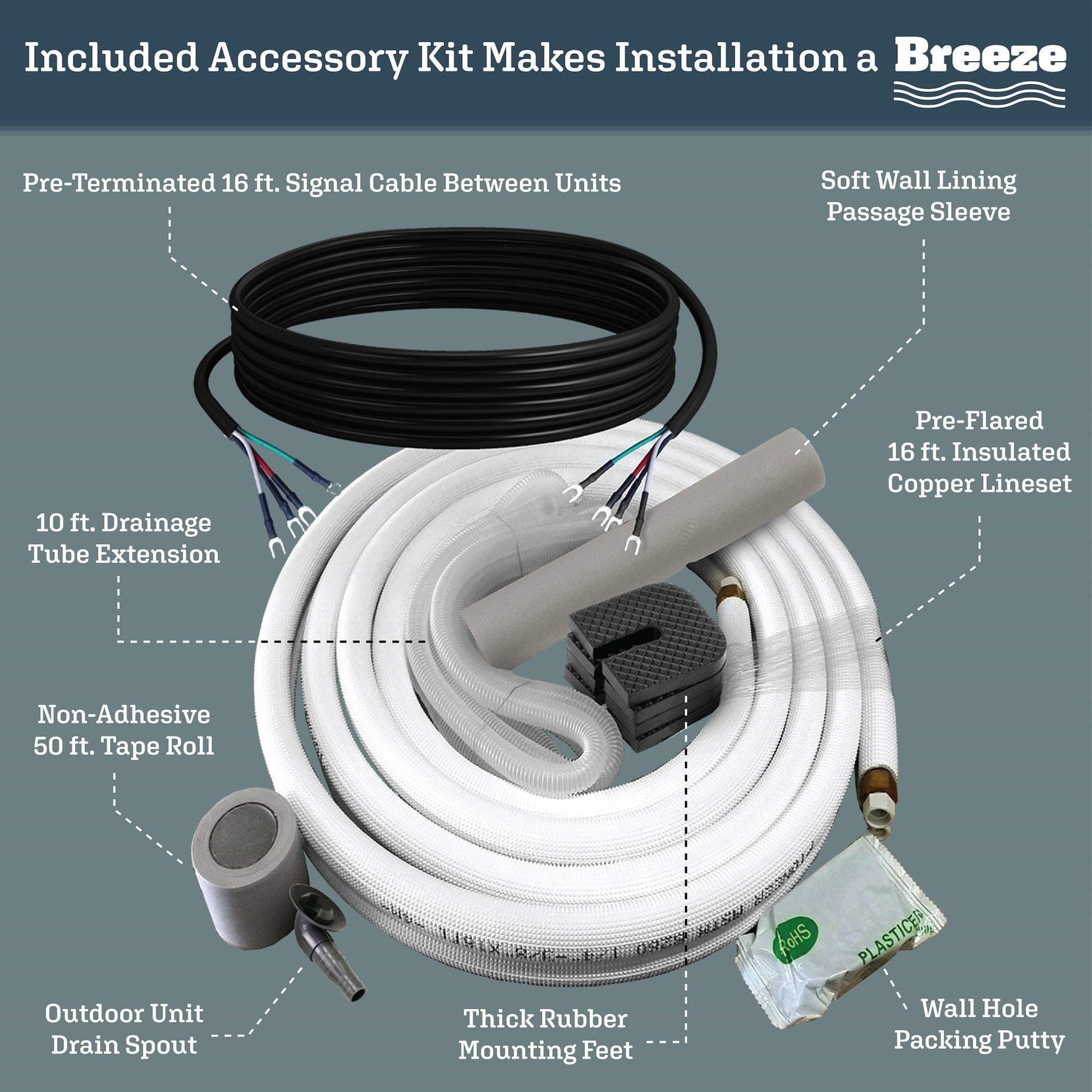

• Installation convenience: Includes a 16 ft pre‑charged line set kit, streamlining installation and reducing the need for extra parts.

Q&A

Q1: What type of system is this Pioneer model?
A: It is a high-wall ductless mini-split air conditioner with integrated heat pump, designed for single-zone cooling and heating.

Q2: What cooling and heating capacity does it provide?
A: Provides 11,500 BTU cooling with efficient heat pump heating, ideal for small to medium rooms.

Q3: How energy-efficient is this unit?
A: Features 17 SEER2 efficiency, lowering energy usage while maintaining consistent comfort.

Q4: What room size is this mini-split suitable for?
A: Recommended for 400 – 600 sq ft, depending on insulation and ceiling height.

Q5: Does it include installation accessories?
A: Yes, comes with a 16 ft installation kit, including pre-insulated copper line set and mounting hardware.

Q6: What electrical requirements does it have?
A: Operates on 230 V single-phase power, compatible with standard residential circuits.

Q7: How does inverter technology improve performance?
A: Variable-speed inverter control ensures precise temperature, quiet operation, and energy savings.

Q8: Can it provide heating in cold climates?
A: Yes, the heat pump supports low-ambient heating, providing comfort year-round.

Q9: What indoor unit style is included?
A: Features a high-wall mounted air handler with optimized airflow and quiet operation.

Q10: Is this system suitable for residential or light-commercial use?
A: Yes, ideal for bedrooms, offices, living rooms, or small commercial spaces.

Maintenance Tips

• Clean indoor air filters every 2–4 weeks to maintain airflow, system efficiency, and indoor air quality.

• Keep the outdoor condenser coil free of dust, leaves, and debris to ensure proper heat transfer and inverter performance.

• Inspect condensate drain lines and ports regularly to prevent leaks and water damage.

• Check refrigerant line insulation and electrical connections annually for safe and efficient operation.

• Use the self-clean cycle periodically to reduce moisture buildup and prevent mold or odors.

• Maintain adequate clearance around indoor and outdoor units for consistent airflow and reliable comfort.

• Schedule professional servicing once per year for inverter diagnostics, refrigerant checks, and system optimization.
