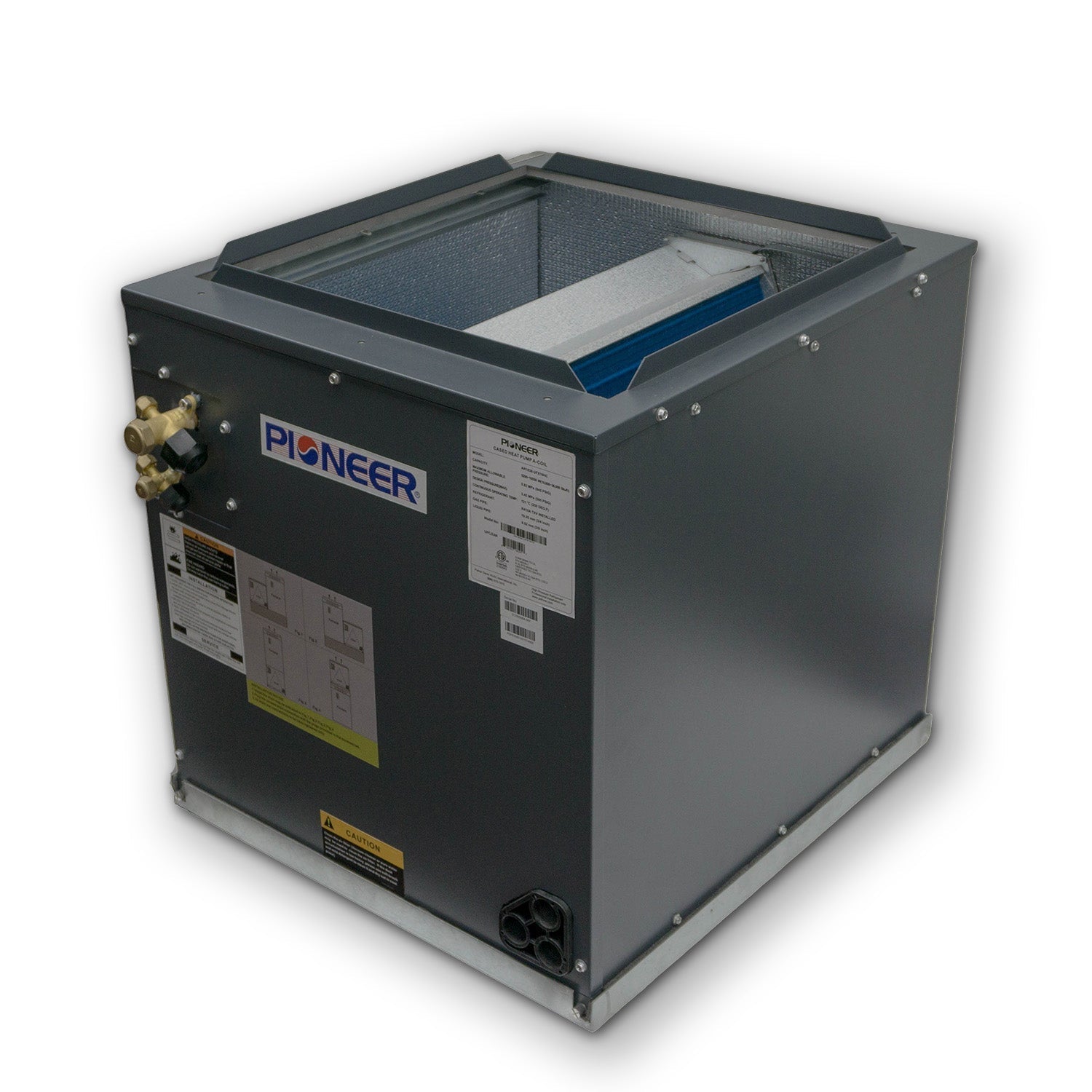

Pioneer 42,000~60,000 BTU Furnace-Connect Multi-Position Cased AC Heat Pump A-Coil - AR4260-UFX18HC

Pioneer 42,000~60,000 BTU Furnace-Connect Multi-Position Cased AC Heat Pump A-Coil - AR4260-UFX18HC

The Pioneer Cased Heat Pump A-Coil is a breakthrough in adaptable and efficient home climate control. This versatile A-coil is crafted to integrate seamlessly with your existing furnace, or, for optimal performance, it can be paired with Pioneer's high-efficiency YH-series heat pump condenser outdoor sections. Designed to work with systems from 42,000 to 60,000 BTU capacity, this A-coil optimizes the heat exchange process, delivering premium heating and cooling for your home. Experience a perfect blend of high-end technology and unparalleled performance with the Pioneer Cased Heat Pump A-Coil.

Features

• Versatile Compatibility: Pioneer's A-Coil is specifically designed to integrate effortlessly with your current furnace, allowing for a smooth upgrade and enhanced system performance. It can mounted in various configurations, according to your preference.

• Optional Match-Up: For peak efficiency, match the A-Coil with Pioneer's high-efficiency YH-series heat pump condenser outdoor section (see models YH4248GHFD18R2 or YH4860GHFD18R2). This combination delivers unrivaled heating and cooling performance.

• Variable Capacity: Catering to systems ranging from 42,000 to 60,000 BTU, this A-coil's flexible design lets you pair it with various heat pump systems to meet your unique needs.

• High Efficiency: Pioneer's advanced engineering assures efficient heat exchange, resulting in optimal performance of your heating and cooling system, a more comfortable environment, and significant energy savings.

• Robust Casing: The A-Coil's durable construction guarantees leak prevention, providing long-lasting service and peace of mind.
• Condensate Management System: A built-in condensate management system adeptly handles any condensation, ensuring the longevity of your equipment by preventing water damage.
• Enhanced Comfort: The Pioneer A-Coil promotes consistent indoor temperatures, providing a more comfortable and enjoyable living environment.

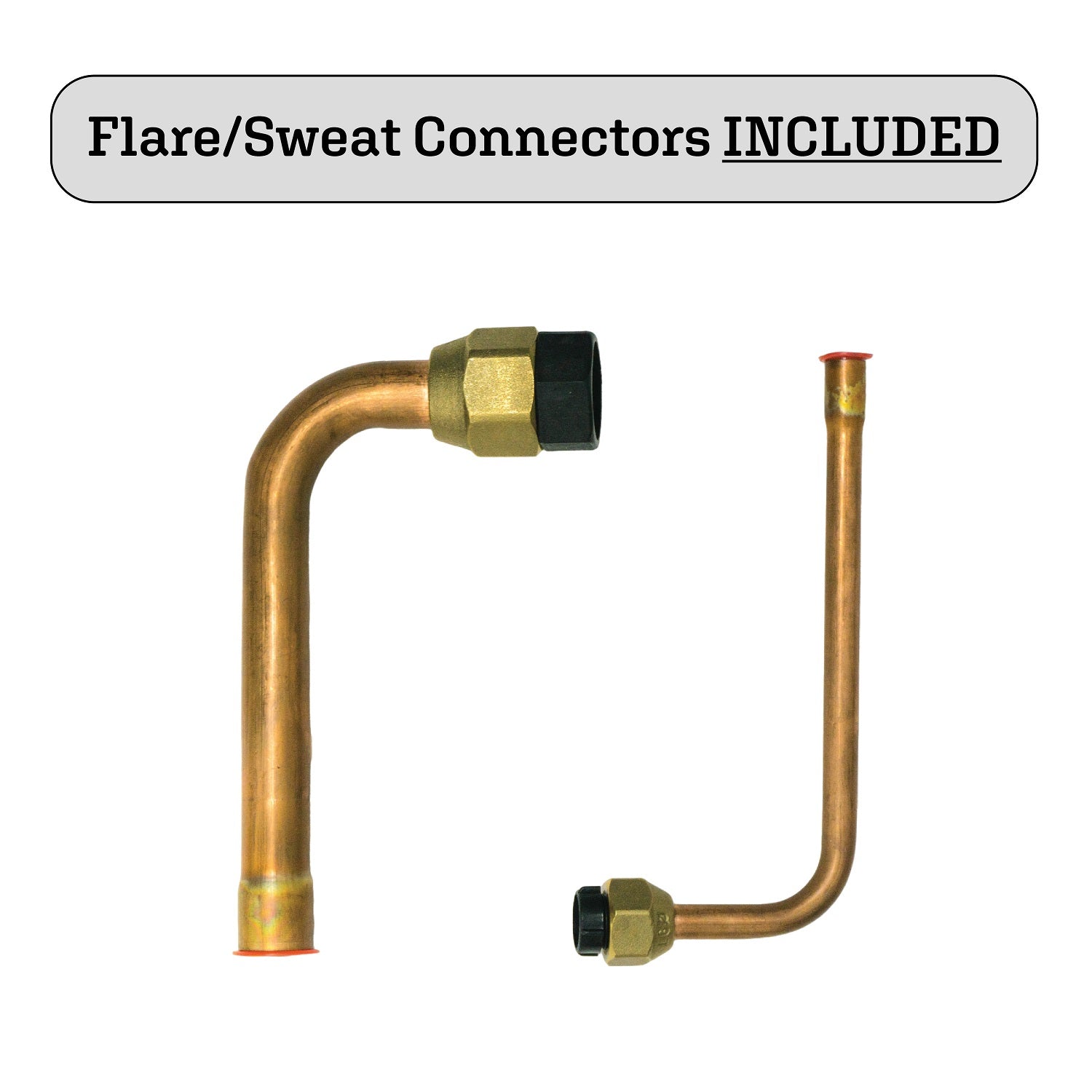

• Adaptable Deployment: Easy integration into your existing in-place furnace, with numerous placement selections, and full compatibility with Pioneer YH-series central condenser outdoor section. Included are sweat to flare connectors for simplified commissioning.

• Energy Savings: Lower your energy consumption and significantly reduce your utility bills thanks to its high-efficiency operation.

• Quality Assurance: Trust in Pioneer's commitment to high-quality products, superior performance, and exceptional durability.

Specifications

What our Experts Think

• Heavy‑duty central split coil solution: The Pioneer 42,000 – 60,000 BTU Furnace‑Connect Multi‑Position Cased AC Heat Pump A‑Coil is designed to serve high‑capacity central air conditioning and heat pump systems, making it ideal for larger homes and zone cooling/heating applications.

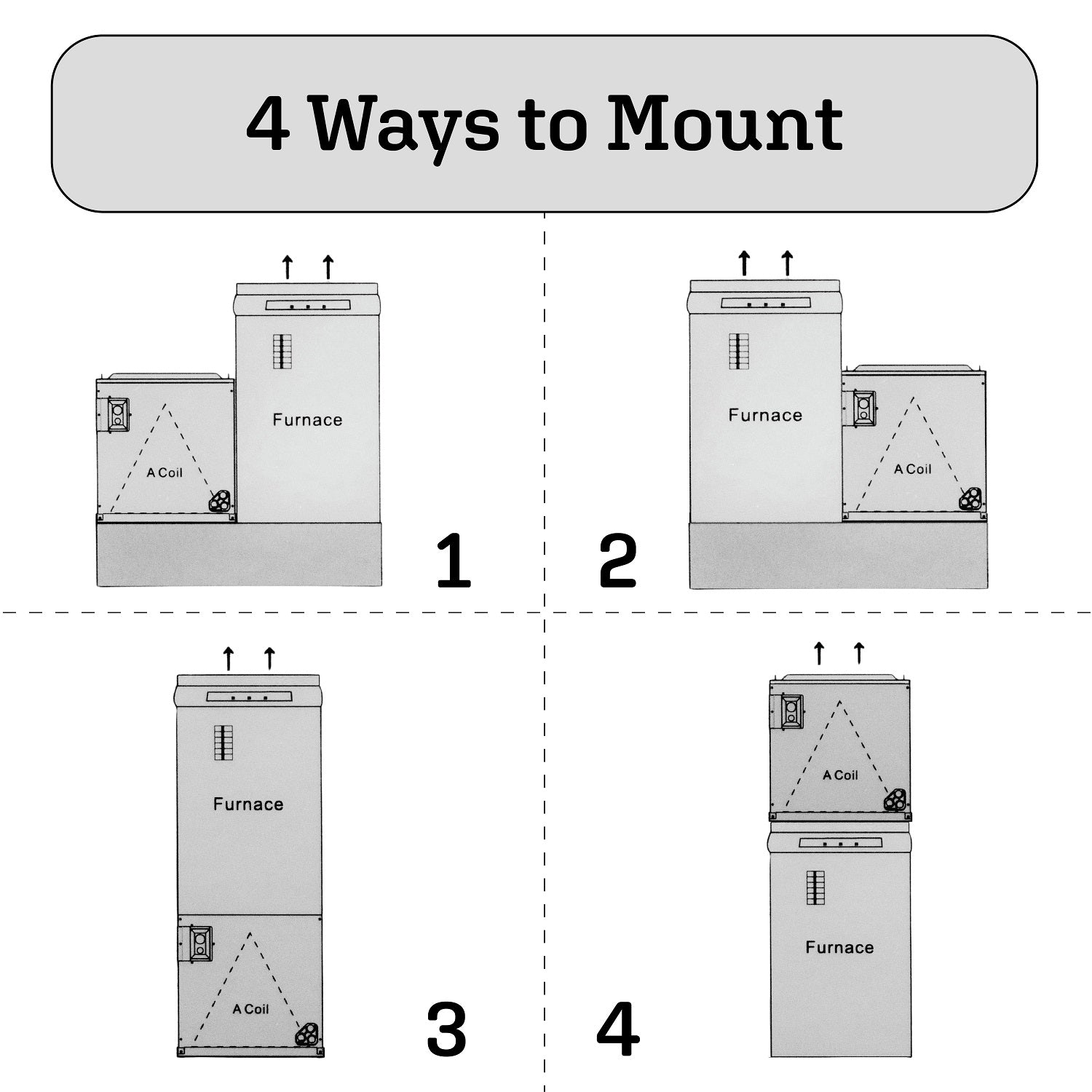

• Versatile multi‑position installation: Flexible layout options — upflow, downflow, left or right horizontal — allow seamless integration with existing ductwork or furnaces in tight attic, closet, or crawl space installations.

• Broad capacity range: Engineered to work with systems from 42,000 to 60,000 BTU, letting you match the coil to a variety of heat pump or A/C condenser sizes to optimize performance and handle bigger living spaces.

• Efficient heat exchange design: Precision coils paired with robust casing improve heat transfer efficiency, supporting stronger cooling and heating performance while helping reduce utility costs.

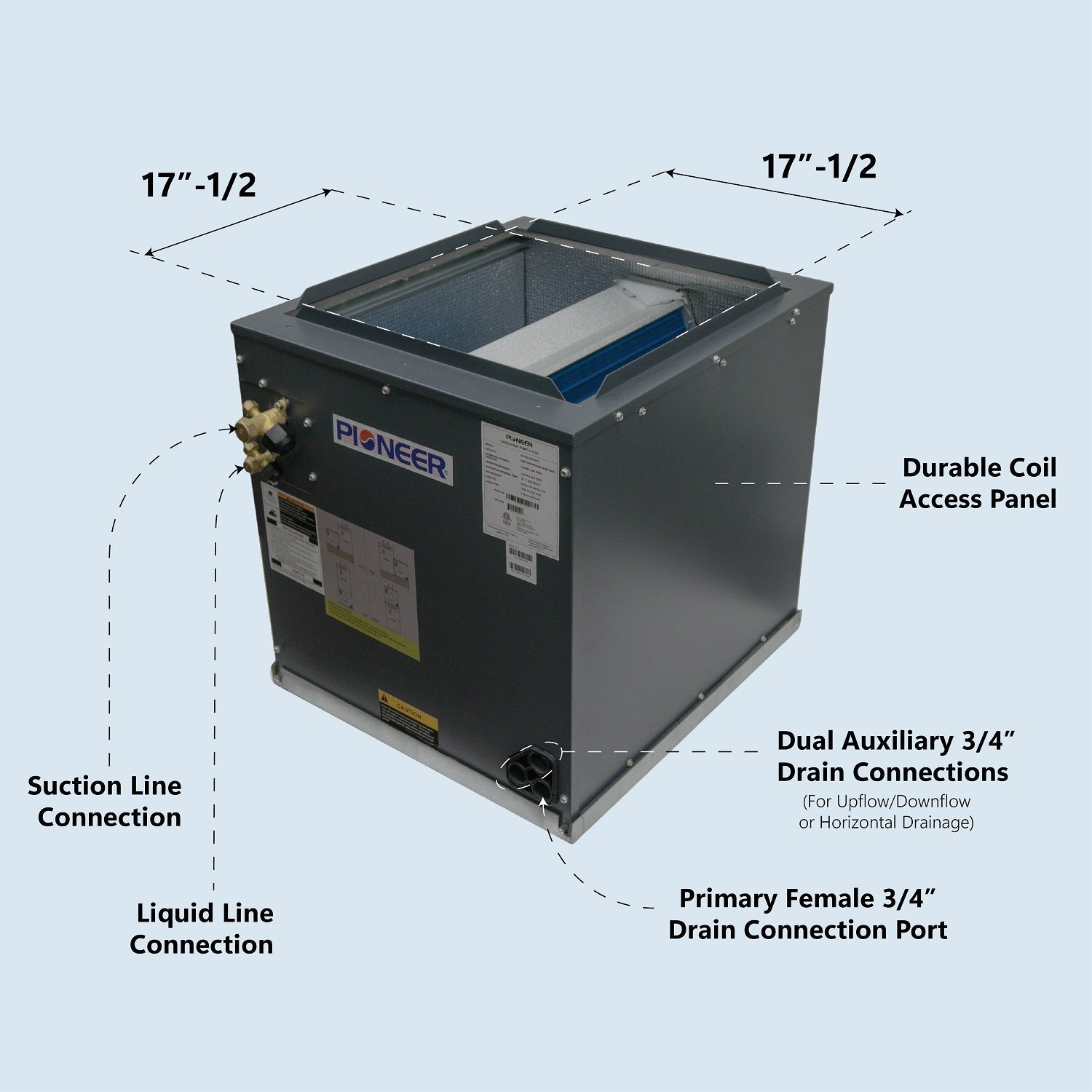

• Durable construction & condensate management: Factory‑cased design prevents leakage and includes a built‑in condensate system to reliably manage moisture and protect internal components.

• Furnace‑connect compatibility: Works smoothly with most existing 208‑230 V furnace blowers and refrigerant circuits, making upgrade or retrofit projects easier and more cost‑effective.

• Pair for peak performance: For best energy and comfort results, experts recommend matching this coil with compatible high‑efficiency Pioneer outdoor heat pump condensers (e.g., YH4248GHFD18R2 / YH4860GHFD18R2).

Q&A

Q1: What type of system is this Pioneer model?
A: It is a furnace-connect multi-position cased A-coil designed for air conditioning and heat pump systems.

Q2: What cooling and heating capacity does it provide?
A: Supports 42,000–60,000 BTU, ideal for medium to large residential or light-commercial applications.

Q3: How does this unit integrate with existing HVAC systems?
A: Furnace-connect design allows seamless installation with compatible gas or electric furnaces.

Q4: What airflow configuration does it support?
A: Multi-position cased design supports horizontal, upflow, or downflow installations for versatile HVAC setups.

Q5: What refrigerant is compatible with this A-coil?
A: Compatible with R-410A refrigerant, ensuring efficient cooling and heat pump operation.

Q6: What electrical requirements does it have?
A: Requires connection to the existing furnace system, with no dedicated high-voltage supply for the coil itself.

Q7: Is it suitable for heat pump applications?
A: Yes, it is fully compatible with heat pump systems, providing efficient heating and cooling integration.

Q8: Can it be used in residential or commercial buildings?
A: Yes, suitable for residential homes, townhomes, and small commercial spaces.

Q9: What makes this A-coil versatile?
A: Multi-position casing allows flexibility in installation orientation and system configuration.

Q10: Does this unit require professional installation?
A: Yes, professional HVAC installation is recommended to ensure proper airflow, refrigerant charge, and system performance.

Maintenance Tips

• Inspect and clean air filters every 1–3 months to maintain airflow, system efficiency, and indoor air quality.

• Keep the surrounding area and coil fins free of dust, debris, and obstructions to ensure proper heat transfer.

• Check condensate drain lines and pan regularly to prevent water buildup or overflow.

• Inspect refrigerant lines, electrical connections, and unit mounting annually to avoid performance loss or safety issues.

• Clean coil fins gently with a soft brush or vacuum to maintain maximum efficiency.

• Schedule professional servicing once per year for refrigerant checks, system diagnostics, and heat pump optimization.
