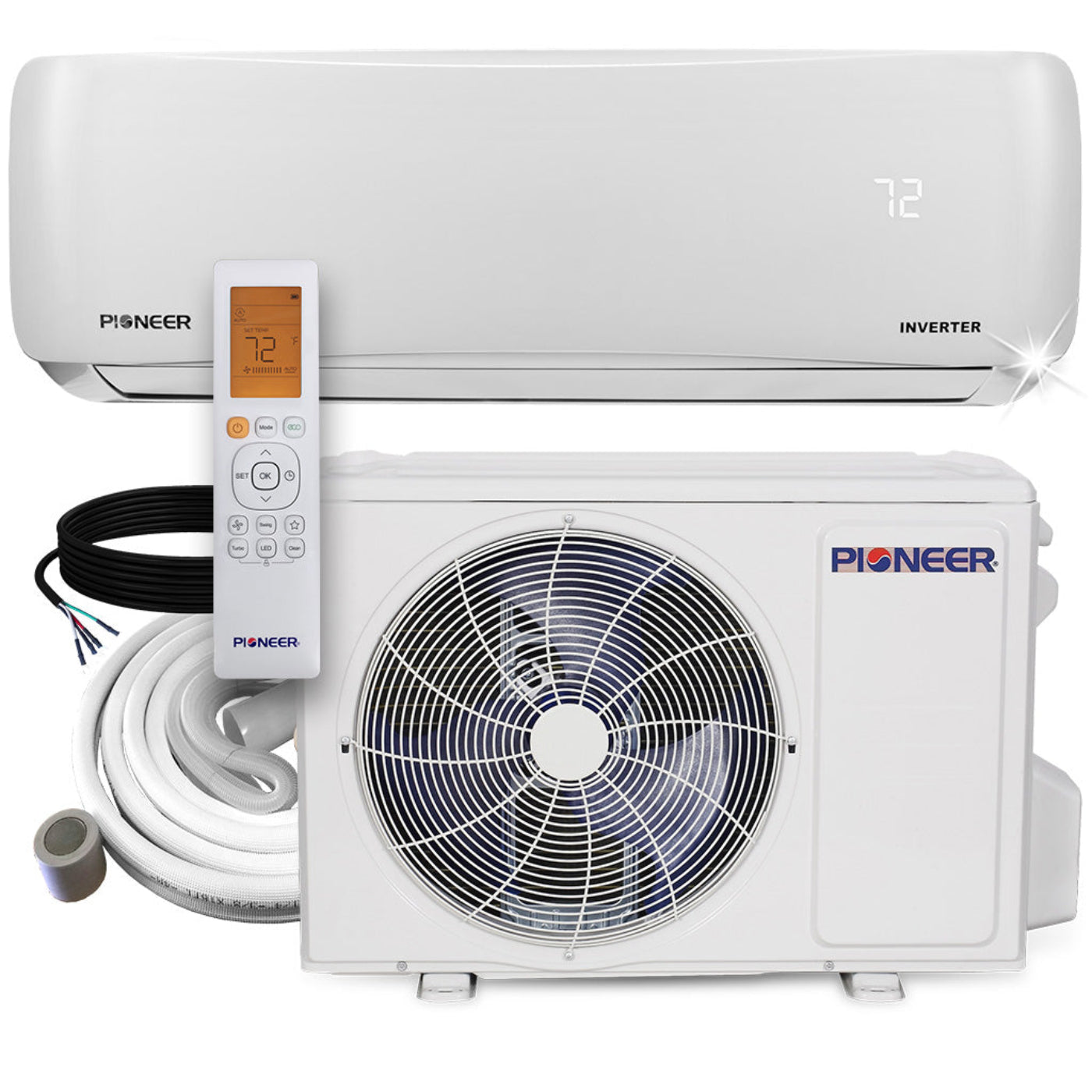

Pioneer EStar 9,000 BTU 24 SEER2 Ductless Mini-Split Inverter++ Energy-Star Air Conditioner Heat Pump System Full Set 230V - WYS009GMFI22RL

Pioneer EStar 9,000 BTU 24 SEER2 Ductless Mini-Split Inverter++ Energy-Star Air Conditioner Heat Pump System Full Set 230V - WYS009GMFI22RL

• Ultra High Efficiency Inverter++ ductless mini split heat pump system
• Cooling capacity: 9,000 BTU/H with 24 SEER2 / 14 EER2 efficiency
• Heating capacity: 9,800 BTU/H with 11.4 HSPF2 / 3.8 COP2 efficiency
• Voltage: 208~230 V, 60 Hertz, 1Ph
• High Wall Mounted Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Customizable length copper line set with flare connections
• Energy-Star Certified
• AHRI Estimated Annual Operating Costs:
• Cooling: $50.00
• Heating: $187.00

Included

• Indoor Unit
• Outdoor Unit
• Wireless Remote Control
• Various Installation Kit Options Available
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual


Manuals

• Series Technical Brochure
• Series User Manual
• Series Installation Manual
• Series Service Manual
• Disassembly Guide
• AHRI Certificate
• Energy Guide

What our Experts Think

• Ultra‑efficient cooling & heat pump power: With 9,000 BTU cooling and 10,000 BTU heating capacity, this 23–24 SEER2 inverter++ system provides excellent seasonal efficiency and strong energy savings for small to mid‑sized rooms (~200–350 sq ft).

• Energy‑Star certified savings: The Energy‑Star rating ensures lower operating costs and better environmental performance compared with non‑certified systems — a solid choice for energy‑conscious homes.

• Smooth inverter heat pump operation: DC inverter modulation delivers precise temperature control, reduced cycling, quieter performance, and enhanced comfort over fixed‑speed units — even at low loads.

• Balanced year‑round comfort: Capable of both efficient cooling in summer and dependable heating in cooler months, this heat pump extends comfort far beyond simple AC use.

• Quiet, user‑friendly indoor design: Indoor sound levels as low as ~24.5 dB help maintain peaceful spaces, while multi‑speed airflow ensures effective distribution.

• Installation‑ready full set: Includes indoor/outdoor units, remote control, and installation kit options — streamlining setup and minimizing extra part purchases.

Q&A

Q1: What type of system is this Pioneer model?
A: It is a ductless mini-split air conditioner with integrated Inverter++ heat pump, designed for energy-efficient single-zone cooling and heating.

Q2: What cooling and heating capacity does it provide?
A: Provides 9,000 BTU cooling with heat pump heating, perfect for small rooms or offices.

Q3: How energy-efficient is this unit?
A: Features 24 SEER2 efficiency, Energy-Star rating, and Inverter++ technology, delivering precise temperature control and reduced energy consumption.

Q4: Does it include installation accessories?
A: Yes, this full set includes indoor unit, outdoor condenser, line set, and installation kit for complete setup.

Q5: What electrical requirements does it have?
A: Operates on 230 V single-phase power, compatible with standard residential circuits.

Q6: How does inverter++ technology improve performance?
A: Variable-speed inverter++ control ensures quiet operation, consistent comfort, and energy-efficient performance.

Q7: Can it provide heating in cold climates?
A: Yes, the heat pump supports low-ambient heating, providing year-round comfort.

Q8: What indoor unit style is included?
A: Features a high-wall mounted air handler for optimized airflow and quiet operation.

Q9: Is this system suitable for multi-zone setups?
A: Yes, it can integrate into multi-zone configurations with compatible Pioneer indoor units.

Q10: What spaces is this system best suited for?
A: Ideal for bedrooms, small offices, living rooms, or compact residential spaces.

Maintenance Tips

• Clean indoor air filters every 2–4 weeks to maintain airflow, system efficiency, and indoor air quality.

• Keep the outdoor condenser coil free of dust, leaves, and debris to ensure optimal heat transfer and inverter performance.

• Inspect condensate drain lines and pan regularly to prevent leaks or water buildup.

• Check refrigerant lines, wiring, and unit mounting annually for safe and reliable operation.

• Use self-clean cycles periodically to reduce moisture buildup and prevent mold or odors.

• Maintain adequate clearance around indoor and outdoor units for proper airflow and consistent comfort.

• Schedule professional servicing yearly for inverter diagnostics, refrigerant checks, and system optimization.
